Description

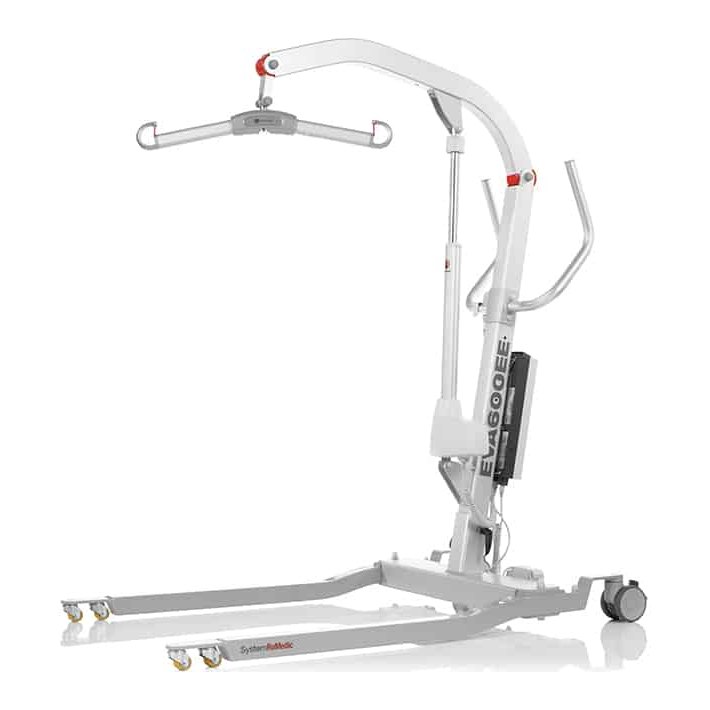

Item 60100010 is the Eva600EE with low legs, for a bed the 3.9 in front caster may not clear.
Who should use the low-leg 600?
- Transfers up to 600 lb (270 kg) where the bed or stretcher sits low.
- Not item 60100003, which keeps 3.9 in casters front and rear.
- Not the 450 lb low-leg codes 60100006 and 60100007.
Will the base fit?
- Outer width stays 29.5 in (750 mm) closed, the same span Savaria prints for both Eva600EE columns.
- Inside width with the legs open is 41.3 in (1,050 mm).
- Savaria does not print a base height for the low legs. Measure under the bed before you order.
Which sling attaches?
The dimensions sheet keeps the 23.6 in (600 mm) bar on both 600 columns. Latches are on the Eva page. No sling family is named. See patient lift slings.
What is specific to 60100010?
- The page says low-leg versions use double front casters of 1.4 in (35 mm). The sheet says 36 mm. This page uses 35 mm.
- Rear casters stay 3.9 in (100 mm) on the dimensions sheet.
- The low-leg photo on the maker page is labelled Eva 450. It is not this main photo.
How does it compare?
Browse patient lifts and electric floor lifts. The Carina 350 folds and is rated well under 600 lb. The Hoyer Advance is a smaller powered floor lift.
Frequently asked questions
Are the rear wheels also 1.4 in?
No. The dimensions sheet keeps the rear caster at 3.9 in (100 mm). Only the front pair is the low size.
Why 35 mm and not 36 mm?
The current Eva page says 35 mm. The older dimensions sheet says 36 mm beside 1.4 in. The page wins.
Does the low leg change the 600 lb rating?
No. Both Eva600EE columns are 600 lb (270 kg). The 450 lb lifts are different item numbers.
Is a base height published?
No. We measure the bed. Do not assume the low leg is a stated number of inches.
Funding and setup
Funding may help: see who may help pay. For this floor lift we assemble it at home, fit the sling and show emergency lowering. A short need can start with a patient lift rental.
Specifications
- Weight capacity
- 600 lb (270 kg)
- Product weight
- 85.9 lb (39 kg) with battery
- Caster size
- Front 1.4 in (35 mm) double, rear 3.9 in (100 mm)
- Sling attachment
- Carry bar 23.6 in (600 mm) with safety latches
- Lifts from floor
- Yes
- Controls
- Hand control for lift and base width
- Emergency lowering
- Manual and electrical
- Battery
- 17.6 Ah
- Water resistance
- IPX4
- Minimum lift height
- 19.7 in (500 mm), low end of the lifting range
- Maximum lift height
- 71.2 in (1,810 mm), high end of the lifting range
- Base width closed
- 29.5 in (750 mm)
- Base width open
- 45.2 in (1,150 mm)
- Base widening
- Electrical base widening
- Leg opening
- 41.3 in (1,050 mm) inside, legs open
- Material
- Aluminum
- Battery charger
- Built-in
- Product type
- Electric floor lift
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
