Description

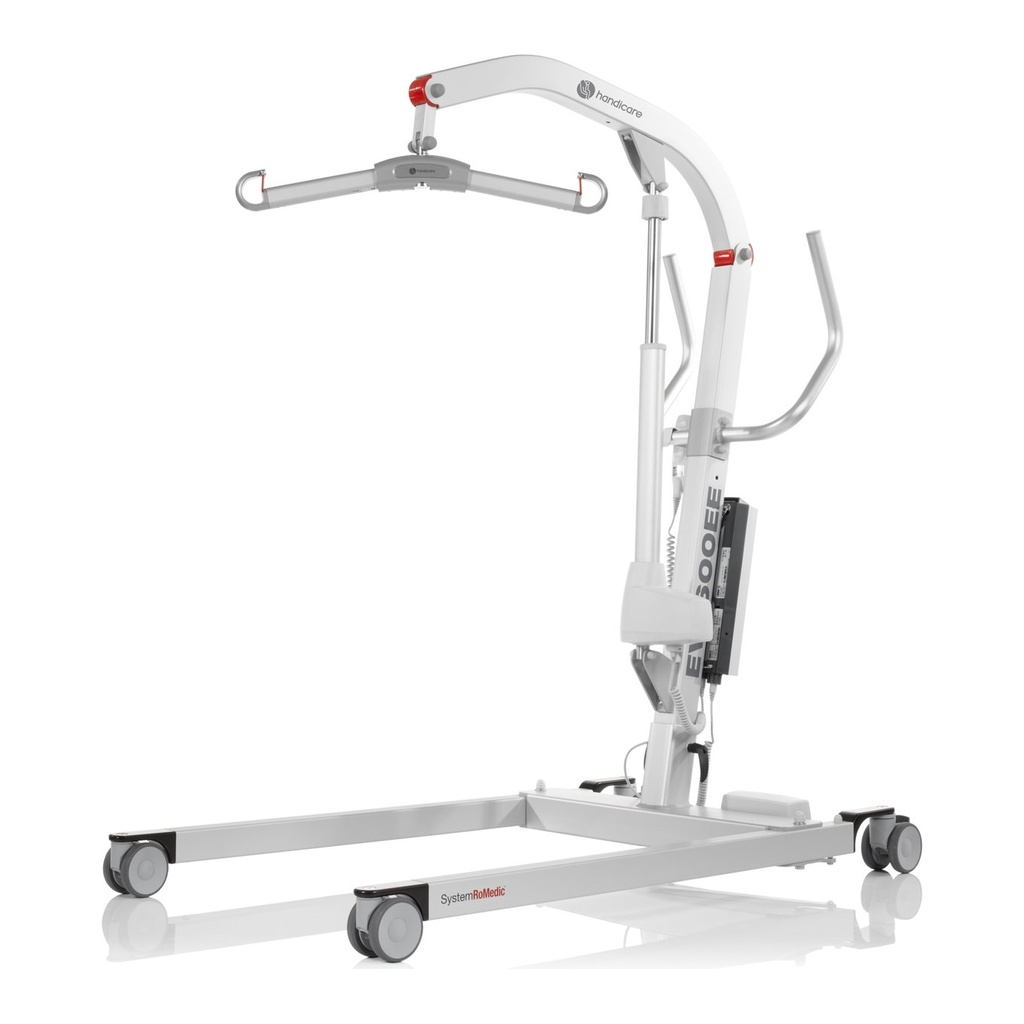

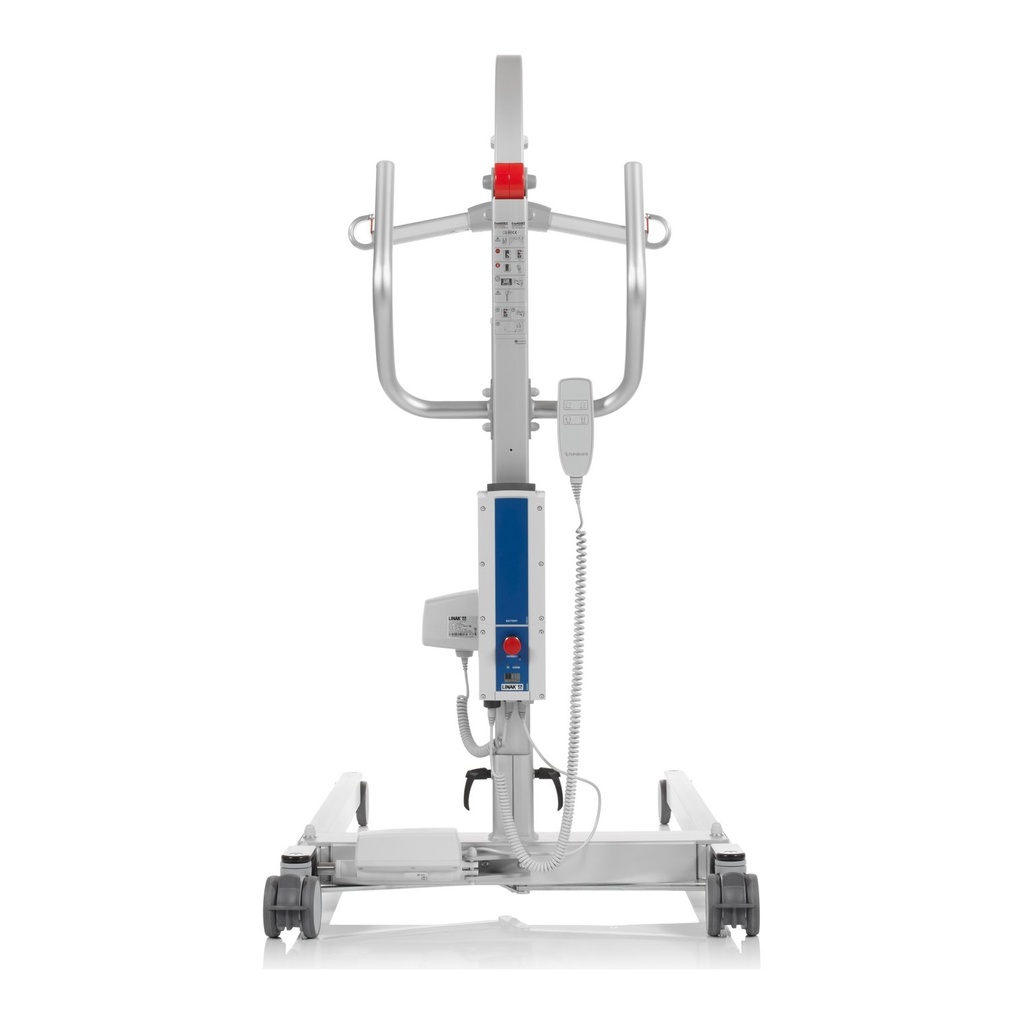

Item 60100003 is the Eva600EE for transfers up to 600 lb (270 kg), including a lift from the floor when the mast position allows it.
Who should use this Eva?
- A person up to 600 lb (270 kg) who transfers on a carry bar with safety latches.
- Not the Eva450EE. Those codes are 60100002 and 60100006, and they stop at 450 lb.
- Not item 60100010 if the bed needs the low front casters.
Will the base fit?
- Outer width is 29.5 in (750 mm) with the legs closed. Check the narrowest door.
- Inside width with the legs open is 41.3 in (1,050 mm).
- Savaria does not print an overall length for the Eva600EE. Measure the room as well as the door.
Which sling attaches?
The 600 uses a 23.6 in (600 mm) carry bar with safety latches. The page does not name a sling family for this code. See patient lift slings. We match the sling before you order.
What is specific to 60100003?
- Casters on this code are 3.9 in (100 mm). The low-leg 600 is 60100010.
- The mast has three height positions. The table prints one lifting range, not a range for each position.
- Photos on the Eva page are labelled 450. They are not used as this main photo.
How does it compare?
Browse patient lifts and electric floor lifts. The Carina 350 is a lighter lift that folds. The Hoyer Advance is another powered floor lift, at a lower working load.
Frequently asked questions
Where is the emergency stop?
On the control box. If the hand control fails, lowering can be manual or electrical.
Does the lifting range change with the mast position?
Savaria prints one span, 19.7 to 71.2 in. It does not split that span by the three mast positions.
Can I treat the 450 walking-sling photo as this sling?
No. That file is labelled Eva 450. It is not evidence for the 600. We match a sling to this bar.
How do I know the battery is charging?
A light on the control box shows charging and a full battery. Charging is built into the lift.
Funding and setup
Funding may help: see who may help pay. For this floor lift we assemble it at home, fit the sling and show emergency lowering. A short need can start with a patient lift rental.
Specifications
- Weight capacity
- 600 lb (270 kg)
- Product weight
- 85.9 lb (39 kg) with battery
- Caster size
- 3.9 in (100 mm)
- Sling attachment
- Carry bar 23.6 in (600 mm) with safety latches
- Lifts from floor
- Yes
- Controls
- Hand control for lift and base width
- Emergency lowering
- Manual and electrical
- Battery
- 17.6 Ah
- Water resistance
- IPX4
- Minimum lift height
- 19.7 in (500 mm), low end of the lifting range
- Maximum lift height
- 71.2 in (1,810 mm), high end of the lifting range
- Base width closed
- 29.5 in (750 mm)
- Base width open
- 45.2 in (1,150 mm)
- Base widening
- Electrical base widening
- Leg opening
- 41.3 in (1,050 mm) inside, legs open
- Material
- Aluminum
- Battery charger
- Built-in
- Product type
- Electric floor lift
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Replacement parts for this model
8 parts
Open the parts finder for this model
- Handicare CBJ battery pack (80100057) 80100057
- Handicare Floor Lift 4-Button Hand Control 80100062 80100062
- Handicare Floor Lift Locking Lever Set 80100032 80100032
- Handicare Floor Lift Push Handle Bar 80100034 80100034
- Handicare front castor, 100 mm (80100001) 80100001
- Handicare HB32-4 hand control (80100156) 80100156
- Handicare MiniLift200 rear castor 100 mm, part 80100002 80100002
- Handicare Replacement Lift Battery 280124 280124
