Description

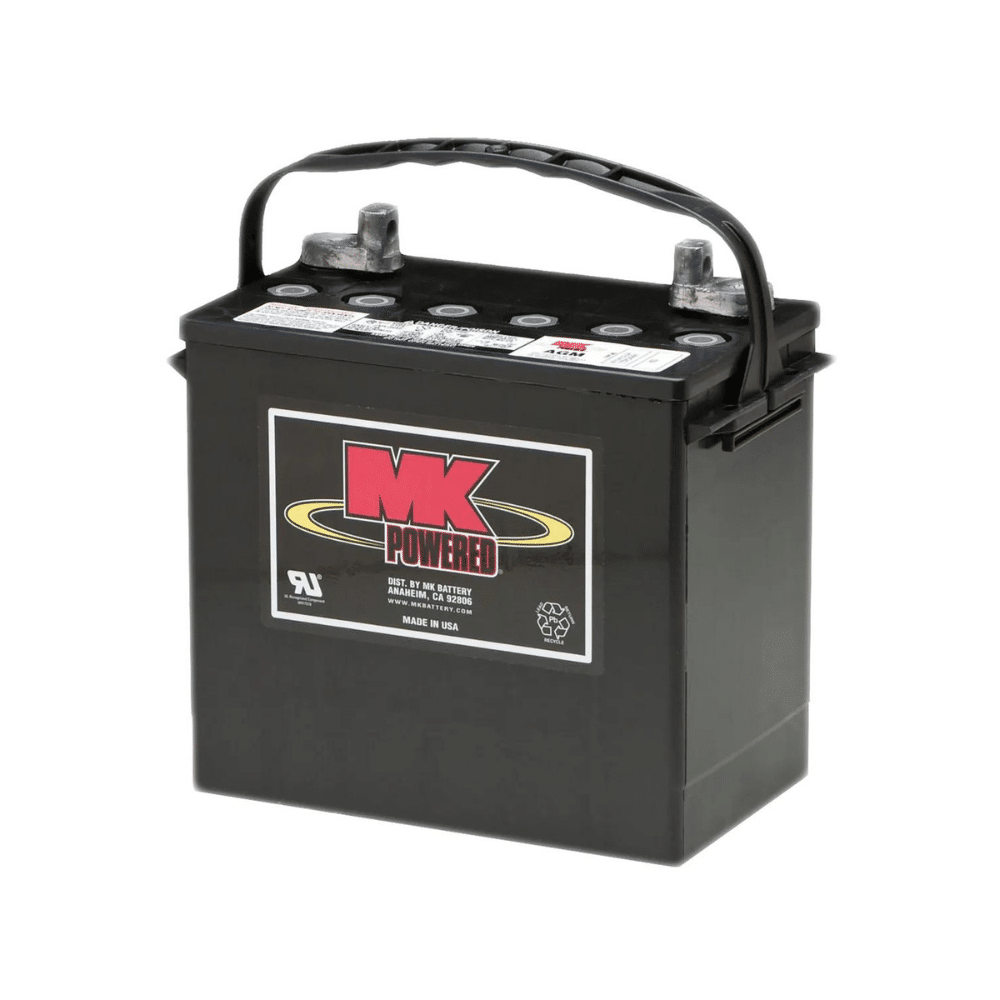

The MK 8A22NF, also marked M22NF SLD A, is one 12 V sealed AGM battery in Group 22NF.
Which power chairs and scooters does this battery fit?
Order it when the old battery is AGM, 12 V, Group 22NF, with a G post terminal, not an M6 insert and not a flag.
- Pride Jazzy EVO 614: Two 12 V NF-22 batteries, AGM or gel. This part is the AGM, with a G terminal.
- Quantum Q6 Edge 2.0 and Q6 Edge 3: Two 12 V NF-22 batteries, AGM or gel. The terminal still has to match.
- Quantum Q6 Edge 3 Stretto: 40 Ah or 55 Ah NF-22; this rating matches the 55 Ah setup.
- Fortress 1700, 3-wheel and 4-wheel: Sunrise requires gel. This AGM does not qualify.
What must match the old battery?
- Read the maker, part number, 12 V, amp-hours and chemistry.
- Look at the terminals: this is a G (T881); an M6 insert or flag is a different battery.
- The case is 9.60 in (244 mm) long including the handle, 5.47 in (139 mm) wide, and 9.24 in (235 mm) high including the terminal.
How many and how should they be charged?
Buy two 8A22NF batteries when both boxes are this AGM part. Do not mix gel with AGM, and do not leave an old battery beside a new one.
Install and operate it upright. Charge current is 5.0 A minimum and 16.5 A maximum.
Frequently asked questions
If my chair needs gel, which MK battery replaces this?
MK's gel Group 22NF is the 8G22NF. Do not mix a gel battery with an AGM battery in the same chair or pair.
Is this the same battery as the Interstate DCM0055?
No. Both are 12 V AGM batteries around 55 Ah in Group 22NF. The DCM0055 uses an M6 insert. Match the terminal, not only the group.
Will it fit a Fortress 1700?
No. Sunrise requires gel in that scooter. Use a gel Group 22NF and measure it. Do not install this AGM.
Warranty terms are in the Warranty tab.
Funding may help: see who may help pay.
Specifications
- Product weight
- 37 lbs (17 kg)
- Installation
- Upright only. Technicians can fit and test it at home or in the shop
- Disposal
- Lead acid over 5 kg: never in household garbage. Take it to a Toronto drop-off depot or a Peel Community Recycling Centre
- Battery capacity
- 55 Ah at the 20-hour rate
- Battery voltage
- 12 V
- Battery group
- Group 22NF
- Battery terminal
- G (T881): offset post, stainless steel 5/16 in bolt and hex nut
- Sold as
- One battery; most scooters and power chairs use two
- Deep cycle
- Cyclic and float service, in the AGM wheelchair group
- Air travel
- Rated non-spillable by ICAO, IATA and DOT; the airline must approve it
- Battery length
- 9.60 in (244 mm) including the handle
- Battery width
- 5.47 in (139 mm)
- Battery height
- 9.24 in (235 mm) including the terminal
- Compatible with
- AGM Group 22NF, G terminal. Not the Fortress 1700. Jazzy EVO 614 and Q6 Edge 2.0, 3 and Stretto if the label is AGM.
- Battery charger
- 5.0 to 16.5 A. Cycle 13.8-14.6 V, float 13.4-13.6 V at 77 F (25 C)
- Warranty
- 3 months free replacement
- Product type
- Power wheelchair and scooter battery
- Chemistry
- Sealed lead acid, AGM (absorbed glass mat), valve regulated
Options and sizes can change some figures. Ask us to confirm yours before you order.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
East Penn Manufacturing warrants the MK 8A22NF battery against failure from a defect in materials or workmanship from the date of sale, and replaces a failed battery with the same model free of charge during the free replacement period.
- Free replacement period: 3 months.
- Covers the original purchaser only; a replacement battery carries the rest of the original period.
- Keep the purchase invoice and bring it with the battery to the place of purchase.
- Excludes batteries that are only discharged, removal and installation labour, batteries that are opened, frozen, neglected or abused, wrong electrolyte or additives, failures caused by a faulty electrical system, and incorrect installation or charging.
