Description

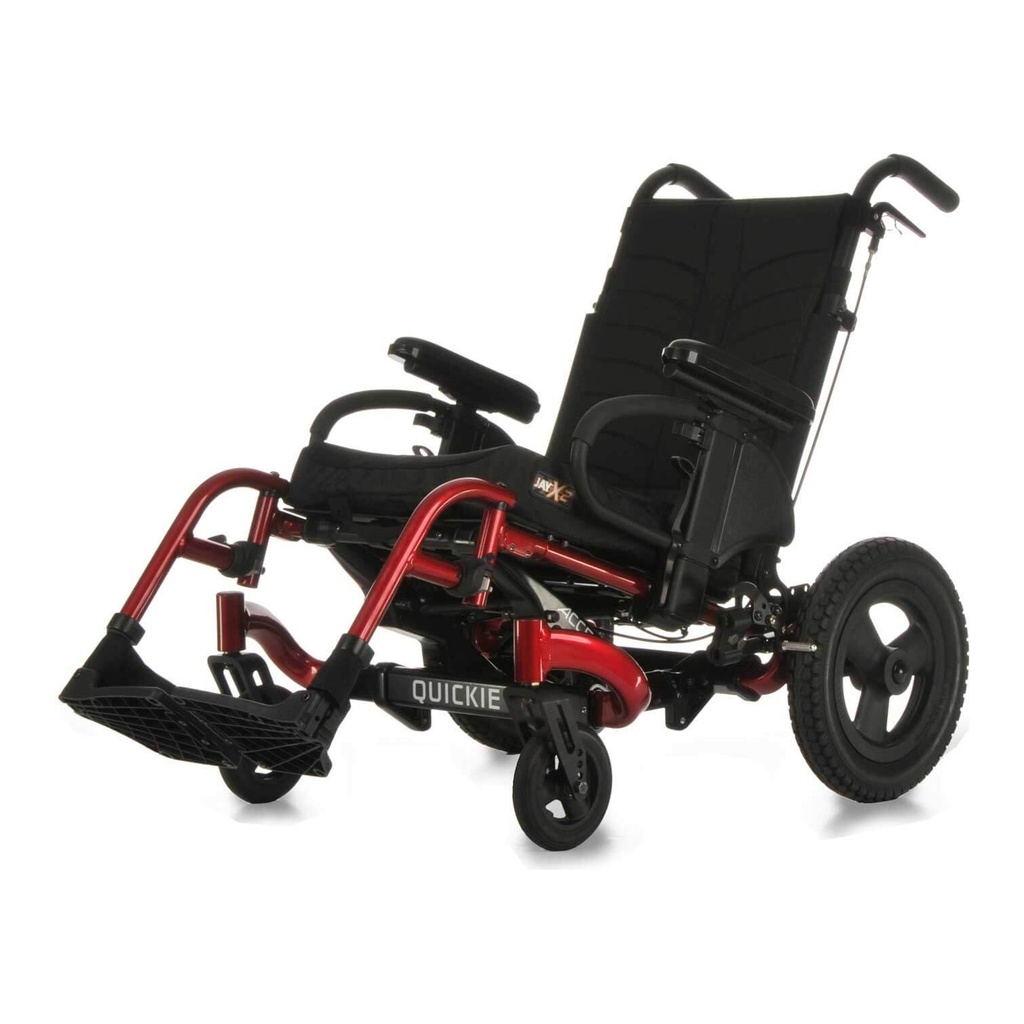

The Quickie Access is a manual tilt wheelchair from Sunrise Medical, with a knee-pivot frame for a rider who propels by hand or foot.
What does it do and how does it work?
The pivot sits at the knee, so the knees rise little through the tilt and the rider keeps the feet or hands on the wheels.
- Tilt is one of two pre-sets: 5 degrees forward to 20 degrees back, or 0 to 25 degrees back.
- The reclining backrest option adds 0 to 50 degrees of recline.

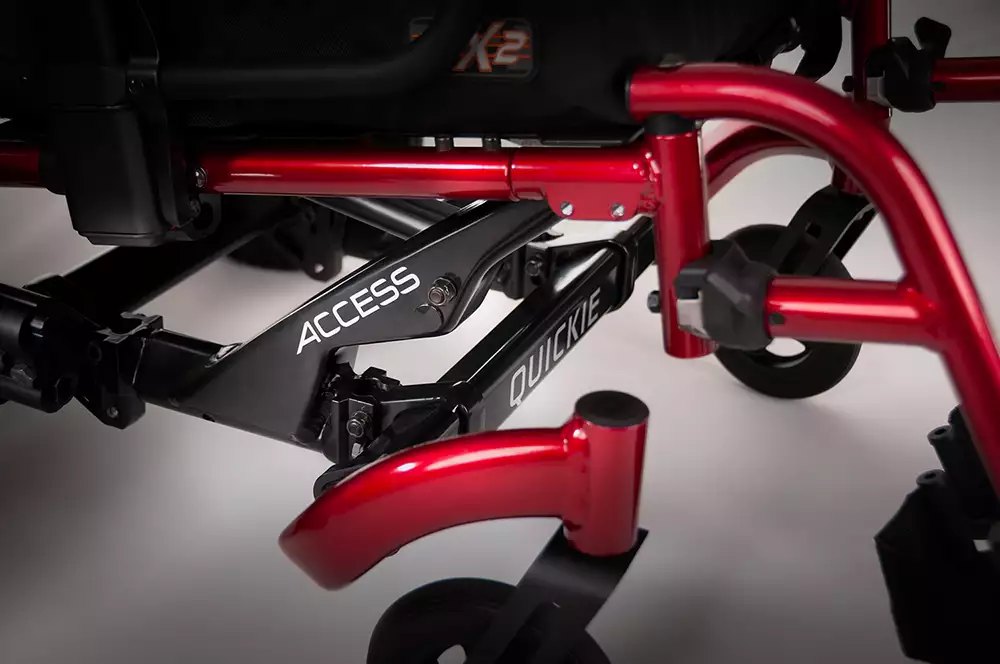

- The rigid aluminium frame has a solid seat pan and carries 300 lb (136 kg).
Who is it for, and who should choose something else?
It suits a rider who propels by hand or foot and needs tilt for pressure relief and posture, with a caregiver to set the tilt.
- Choose the Quickie Iris if the chair should pivot at the centre of gravity instead of the knee.
Will it fit?
- Seat width and depth each run 14 to 22 in (35.6 to 55.9 cm); 14 to 17 in uses the small frame.
- Front seat height runs 12 to 20 in (30.5 to 50.8 cm) in half-inch steps.
- The gas spring is selected by the rider's weight, in six bands from 150 lb (68 kg) and under to 271 to 300 lb (136 kg).
Using it day to day
A foot release or a backrest trigger cable sets the tilt.
- Before a transfer, flip back or remove the armrests, swing or remove the footrests, and set the wheel locks.
- Use the forward tilt to help the rider stand, and the rear tilt for pressure relief.
- Pneumatic tyres take 35 psi (241 kPa) at 16 in, 40 psi (276 kPa) at 12 in, 65 psi (448 kPa) at 20 and 22 in, and 75 psi (517 kPa) at 24 in.
What does it work with, and what are its limits?

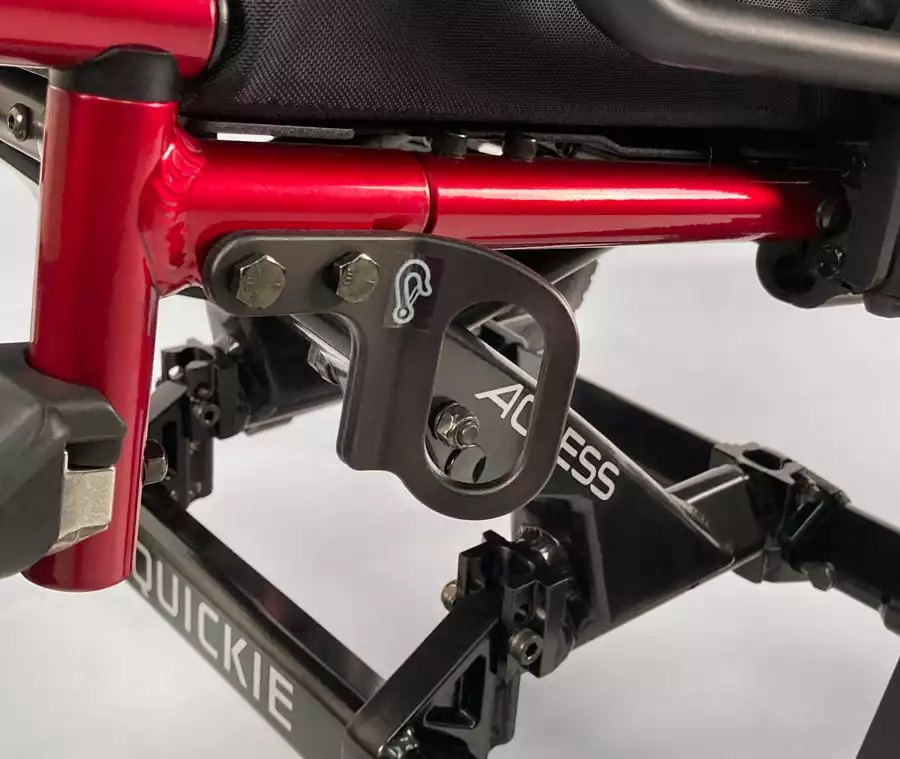

With the transit option, the chair has tie-down brackets for vehicle travel.
- Keep the chair straight on a slope: under 6 degrees up, down or across, with no turns.
- The frame carries 300 lb (136 kg), and the gas spring must match the rider's weight band.
- The foot release is not available with a 19 to 22 in (48.3 to 55.9 cm) depth and flip-back armrests, nor the reclining backrest with a 22 in (55.9 cm) deep frame and flip-back armrests.
Which version should I choose?
Choose the pre-set, release, back and colours when you order.
- The pre-sets are -5 to 20 degrees or 0 to 25 degrees; releases are a foot release or a backrest trigger cable.

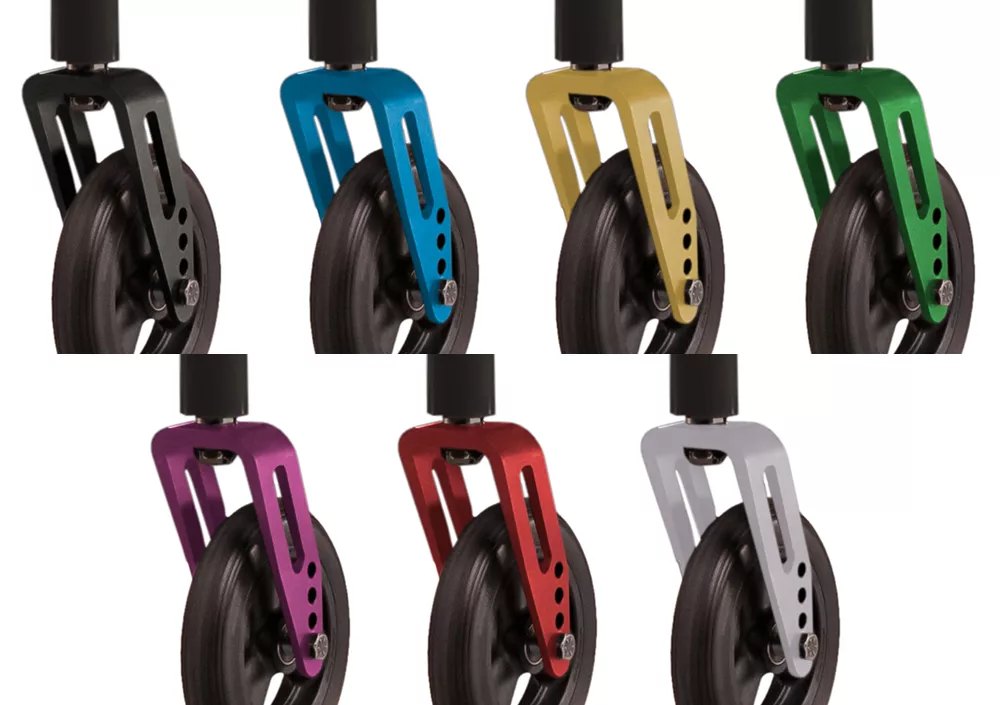

- Twenty frame colours, four patterned finishes and seven anodized packages are available.
How does it compare?
The Quickie Iris pivots at the centre of gravity rather than the knee. The Quickie SR-45 is the plainer tilt chair. See tilt wheelchairs.
Frequently asked questions
Can the rider propel it with their feet?
Yes. The low seat and knee pivot keep the feet on the ground through the tilt.
Is a cushion included?
No. Cushions and back supports are ordered separately.
Can it be used in a vehicle?
Yes, with the transit option and its tie-down brackets; without it, transfer to a vehicle seat.
Funding may help: see who may help pay. Warranty terms are in the Warranty tab.
Specifications
- Weight capacity
- 300 lbs (136 kg)
- Transport weight
- 32 lbs (14.5 kg) at 16" x 16" with the rear wheels, armrests and footrests removed
- Seat width
- 14" to 22" (35.6-55.9 cm); 14" to 17" on the small frame, 18" to 22" on the large frame
- Seat depth
- 14" to 22" (35.6-55.9 cm)
- Back height
- 15" to 21" (38.1-53.3 cm), or 18" to 24" (45.7-61 cm) on the tall back cane, set by raising or lowering the push handles
- Back angle
- Fixed back, or the reclining backrest option, which adjusts 0 to 50 degrees
- Armrests
- Flip-back height adjustable, single post height adjustable, length adjustable locking flip-up, or adjustable locking flip-up; or none
- Legrests
- Swing in and out hangers at 60, 70 or 80 degrees, an elevating hanger or an articulating hanger; footrests mount to extension tubes
- Tilt range
- 5 degrees forward to 20 degrees back, or 0 to 25 degrees back
- Seat height
- Front seat to floor 12" to 20" (30.5-50.8 cm) in half-inch steps
- Rear wheel size
- 12", 16", 20", 22" or 24" mag wheels or a 24" lite spoke wheel; polyurethane, pneumatic or airless tyres; quick-release or threaded axles
- Caster size
- 4", 5", 6", 7", 8" x 1", 8" x 1.5" or 8" x 2"
- Brakes
- Push-to-lock wheel locks, with an attendant foot lock, drum brake or hub lock available
- Folding

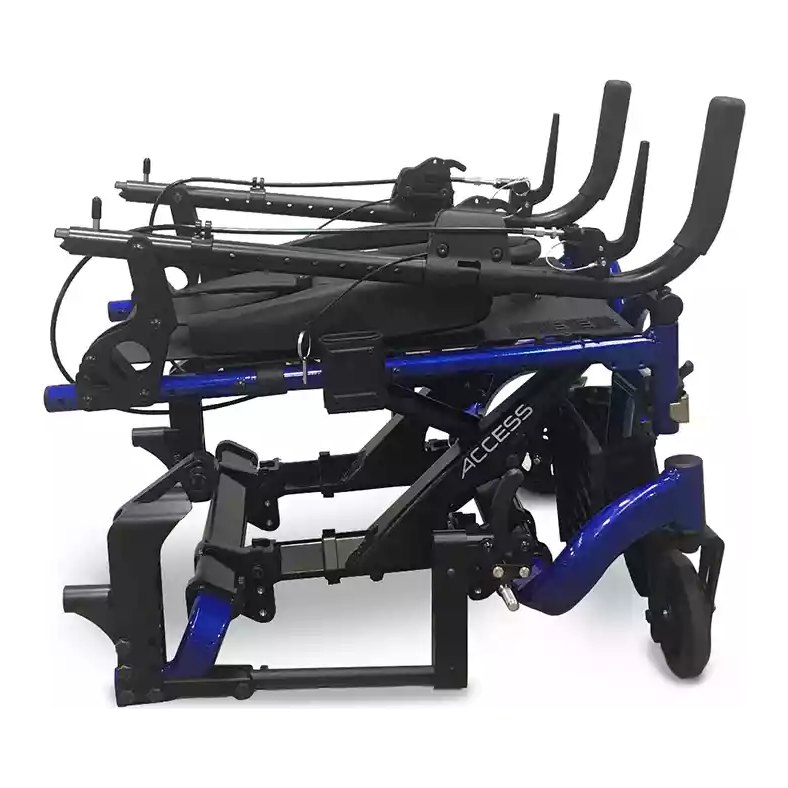

- Rigid frame; the back folds down and the rear wheels lift off for transport
- Frame material
- Aluminium
- Available colours
- 20 frame colours, 4 patterned finishes and 7 anodized colour packages
- Compatible with
- Transit option with tie-down brackets, a tray table in four widths, and JAY cushions and backs
- Warranty
- Frame and cross brace: lifetime for the original owner. Sunrise-made parts: 1 year. Tyres, tubes, upholstery, pads and grips are not covered
- Product type
- Tilt-in-space manual wheelchair
Options and sizes can change some figures. Ask us to confirm yours before you order.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Sunrise Medical warrants the QUICKIE Access tilt-in-space wheelchair against defects in materials and workmanship, for the first consumer purchase through an authorized Sunrise Medical dealer in Canada or the USA. Not transferable.
- Frame and cross brace: lifetime, for as long as the original purchaser owns the chair.
- Sunrise-made parts and components: 1 year from the first consumer purchase.
- Labour to repair, remove or install parts is paid by the owner.
- Not covered: tires and tubes, upholstery, pads and push-handle grips, and damage from neglect, accident, misuse, improper repair, unapproved modification or exceeding the weight limit.
