Description

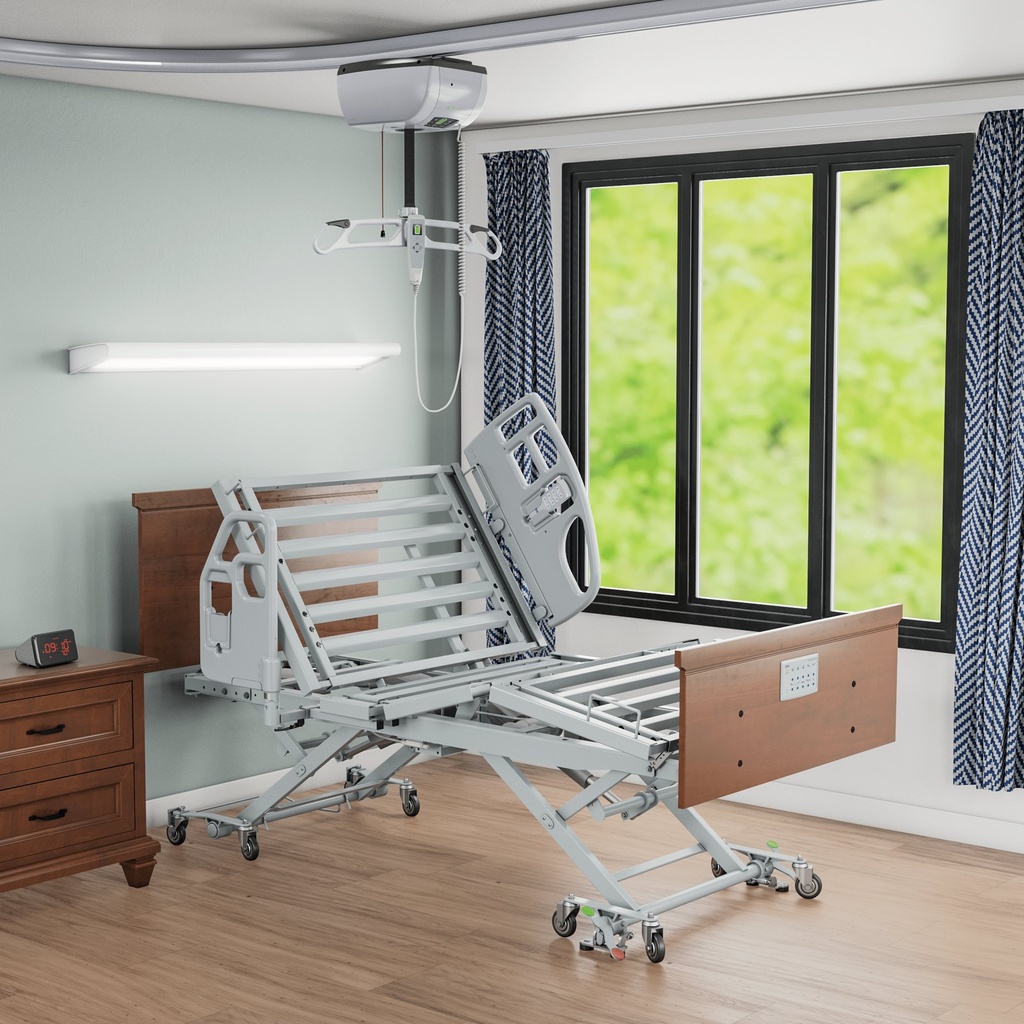

The Savaria SPAN ReadyWide Plus MC7WPML is a long-term care bed with a 650 lb (295 kg) safe working load. It has mobility casters, a control panel in the foot board and a floor lock.
What does it do and how does it work?
- Push-button expanders open the sleep surface from 35 to 39 or 42 in (889, 991 or 1067 mm).
- Four DC actuators set height from 7-7/8 to 31 in (200 to 787 mm), back 0 to 70 degrees and knee 0 to 30 degrees.
- Smart Stop pauses the descent at 12-1/2 in (318 mm); the foot-end control lowers the rest.
- The 16-function foot-end control adds lockout, Trendelenburg 0 to 16 degrees, reverse 0 to 15 degrees and Comfort Chair.
- 3 in (76 mm) casters roll at any height, and the floor lock holds the bed in place.
- The 650 lb (295 kg) load covers resident, mattress, rails and accessories; the bed weighs 270 lb (123 kg).
Who is it for, and who should choose something else?
- For a long-term care room that needs 650 lb and a deck that widens.
- For staff who move the bed between rooms and adjust it from the foot end.
- For a 500 lb bed choose the standard model; the maker intends MC7 beds for long-term care, not home care.
Will it fit?
- Sleep surface: 35, 39 or 42 in wide (889, 991 or 1067 mm) and 76, 80 or 84 in long (1930, 2032 or 2134 mm).
- Overall length is 82, 86 or 90 in (2083, 2184 or 2286 mm) with head and foot boards.
- The mattress must fill the full deck width and length and sit inside the mattress stops.
- Measure the room and route in; a free home assessment checks the space.
Using it day to day
- The 11-function pendant runs height, back, knee, auto contour and Comfort Chair.
- The foot-end control repeats those functions and adds the lockout, Trendelenburg and reverse Trendelenburg.
- Run the motors for 2 minutes at most, then leave them 18 minutes.
What does it work with, and what are its limits?
- Battery backup is optional: Q6701 for the standard model or Q6770 for the Plus. The base bed has none.
- Rails are separate: R9959 pivot assist set, R9308H head-end half rails and R9519 split side rail.
- Head and foot boards are separate, in Lincoln, Standard, Lethbridge or Trenton profiles and five finishes.
- Electrical components carry 5 years, wear parts 1 year, and the frame and welds 15 years.
How does it compare?
- ReadyWide standard bed: the same frame at a 500 lb (227 kg) safe working load.
- SPAN Encore bed: a retracting-deck bed with a 600 lb safe working load.
- Long term care beds: the rest of the range.
Frequently asked questions
Is MC7WPML the 500 lb ReadyWide?
No. MC7WPML is the Plus model at 650 lb (295 kg). The standard 500 lb frame is MC7WML.
What comes with the bed?
The frame with its 11-function pendant, 16-function foot-end control, mattress stops, mobility casters and floor lock. Mattress, rails, boards and battery are separate.
Can the bed be used at home?
The maker intends the MC7 beds for long-term care, not home care. For a home, choose a homecare bed.
Funding may help: see who may help pay.
Specifications
- Weight capacity
- 650 lbs (295 kg) safe working load, including resident, mattress, rails and accessories
- Product weight
- 270 lbs (123 kg) without accessories or head and foot boards
- Safety standard
- ANSI/AAMI ES60601-1:2005; CAN/CSA-C22.2 No. 60601-1-08, No. 60601-2-52:11 and No. 60601-1-2-08
- Caster size
- 3 in (76 mm) heavy duty swivel casters, mobile at any height
- Caster locks
- Total floor lock on MC7WPML, with mobility at any height
- Overall length
- 82, 86 or 90 in (2083, 2184 or 2286 mm) with head and foot boards
- Mattress fit
- Must fill the full deck width and length and sit inside the mattress stops; firm borders
- Package contents
- Frame with 11-function pendant, 16-function foot-end control, mattress stops, mobility casters and floor lock; mattress, rails, boards and battery separate
- Compatible rails
- R9959 three-position pivot assist rails; R9308H head-end half rails; R9519 split side rail
- Motors
- Four DC self-lubricating linear actuators; 10% duty cycle (2 minutes on, 18 minutes off)
- Battery backup
- Optional 24 V DC Q6701 (standard) or Q6770 (Plus) battery, factory installed
- Hand pendant
- 11-function hand pendant; 16-function foot-end staff control with lockouts
- Bed width
- 35, 39 or 42 in (889, 991 or 1067 mm) sleep surface
- Bed length
- 76, 80 or 84 in (1930, 2032 or 2134 mm) sleep surface
- Size options
- Push-button width expansion to 39 or 42 in; 4 in extender Q6785 for the Plus, factory installed
- Minimum bed height
- 7-7/8 in (200 mm) floor to mattress support
- Maximum bed height
- 31 in (787 mm) floor to mattress support
- Bed positions
- Height, back, knee, auto contour and Comfort Chair; Trendelenburg 0 to 16 degrees and reverse 0 to 15 degrees from the foot-end control
- Section angles
- Back 0 to 70 degrees; knee 0 to 30 degrees
- Head and footboards
- Optional; profiles Lincoln, Standard, Lethbridge and Trenton
- Sold as
- One bed, code MC7WPML
- Available colours
- Valley Oak, Candle Light, Hardrock Maple, Summer Flame and Choco board finishes; boards are separate
- Warranty
- Electrical 5 years; batteries, pendants, FECs, cables and wear parts 1 year; frame and welds 15 years
- Product type
- Long term care bed
Options and sizes can change some figures. Ask us to confirm yours before you order.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Span Medical Products Canada warrants the Advantage ReadyWide Plus bed MC7WPML against defects in workmanship and materials under normal use, from the date of first delivery.
- Frame and all welds on steel structural parts: 15 years.
- Control box and actuators (motors): 5 years.
- Batteries, hand pendants, foot-end controls and cables: 1 year.
- Parts subject to wear and bed accessories: 1 year.
- Covers the original purchaser only. Labour is not covered; return shipping is covered in the first year.
- Excludes abuse, misuse, poor maintenance, excessive loads, unapproved repairs or modifications, and parts from other makers.
