Description

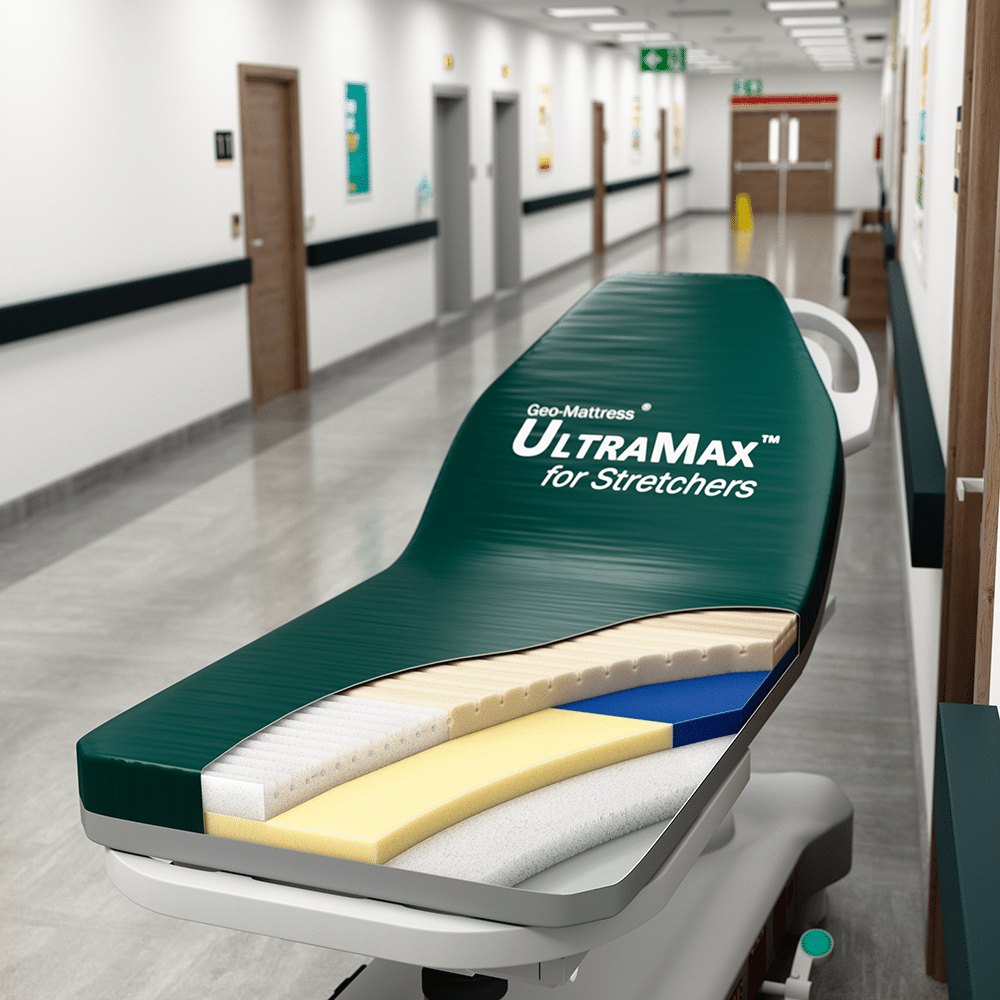

The Span America Geo-Mattress UltraMax for Stretchers, part 47318, is a 5 in (13 cm) foam pad for a 75 by 26 in (191 by 66 cm) stretcher deck.
What does it do and how does it work?

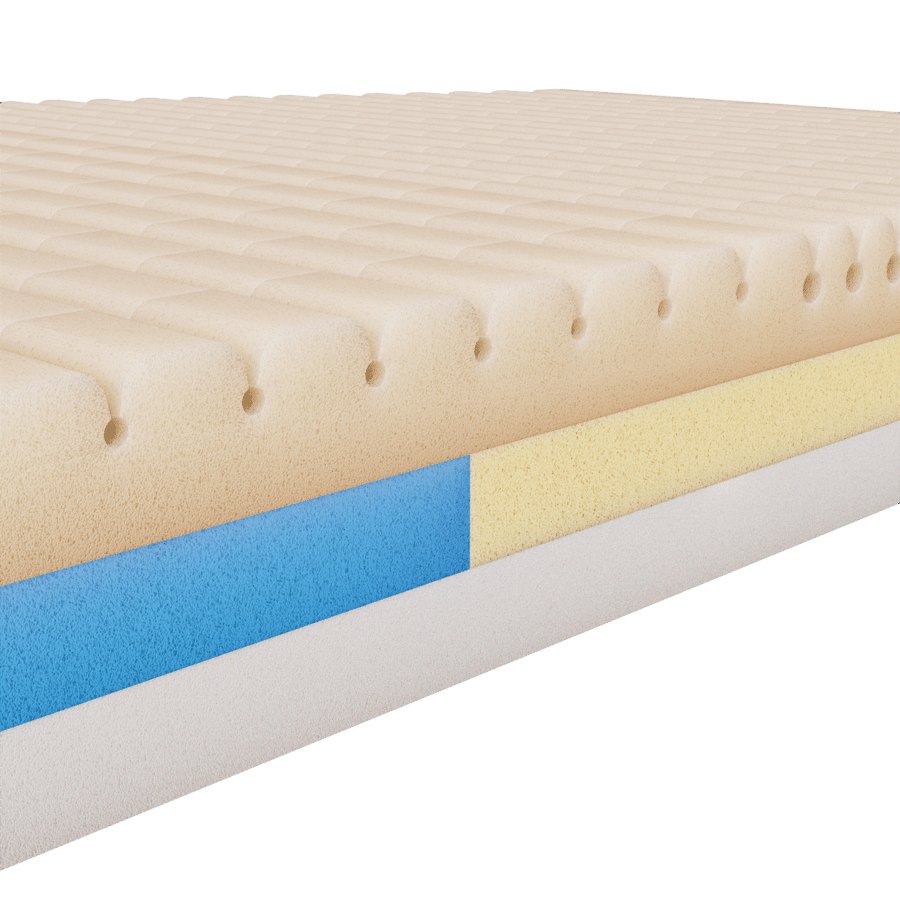

- The seat section uses UHP 500 foam, with a support factor Span rates 55% higher than traditional high-resilience foam.
- The Geo-Matt top has individually articulating cells, so the surface moves with the person instead of dragging.
- Ring-of-Air channels between the cells let heat and moisture escape.
- An extra-soft heel section lets the heels sink in.
- Silicone-coated bands under the cover at the heels, sacrum and shoulder blades reduce shear.
- Wide hook strips underneath hold the pad on the deck.
Who is it for, and who should choose something else?
- A stretcher or gurney with a 26 by 75 in deck: ambulance, imaging, procedure room or corridor.
- The care team decides whether this surface suits the person's skin and risk.
- A hospital bed needs a wider, longer bed mattress.
- A person who needs alternating pressure or low air loss needs a powered surface.
Will it fit?
- Measure inside the deck frame: 75 in (191 cm) long by 26 in (66 cm) wide.
- The head end tapers over 7 in (18 cm); the foot end is square.
- At 5 in (13 cm) high, check the straps, side rails and transfer height.
- The pad is rated up to 700 lbs (318 kg); the stretcher's own safe working load applies if it is lower.
- A pad that has touched skin cannot be returned, so measure first. See our return policy.
Using it day to day
- Press the hook strips onto the deck fabric and check the pad does not slide at the head end.
- The LifeSpan cover is fluid resistant, antimicrobial and tear resistant, with a flapped zipper.
- It is cleanable and resists bleach and other harsh disinfectants; follow the stretcher maker's cleaning protocol.
- Check the cover and foam for tears and flat spots at each linen change.
What does it work with, and what are its limits?
- The hook strips need a deck that accepts hook-and-loop; confirm the deck surface before you rely on them.
- It is not a hospital-bed mattress, an overlay or a powered surface: there is no pump or air cell.
- Do not use it on a hospital bed; the 26 in pad leaves a large side-rail gap.
- The foam and cover are latex-free and PBDE-free.
- Span makes other UltraMax codes for 76 in decks and 29 to 30 in widths; ask us if yours is not 75 by 26 in.
How does it compare?
- Geo-Mattress UltraMax: the 6 in hospital-bed version of the same zoned foam.
- Geo-Mattress Pro: a 6 in, 300 lb foam mattress for a hospital bed.
Frequently asked questions
Which end goes at the head?
The end with the 7 in (18 cm) taper goes at the head; the foot end is square.
Is this a mattress or an overlay?
A replacement pad for a stretcher deck, not an overlay and not a hospital-bed mattress.
What if my stretcher deck has no hook fabric?
The pad relies on its hook strips; a deck without loop fabric needs a different fixing, so check first.
Funding may help: see who may help pay.
Specifications
- Weight capacity
- Up to 700 lbs (318 kg)
- Product weight
- About 20 lbs (9 kg)
- Construction

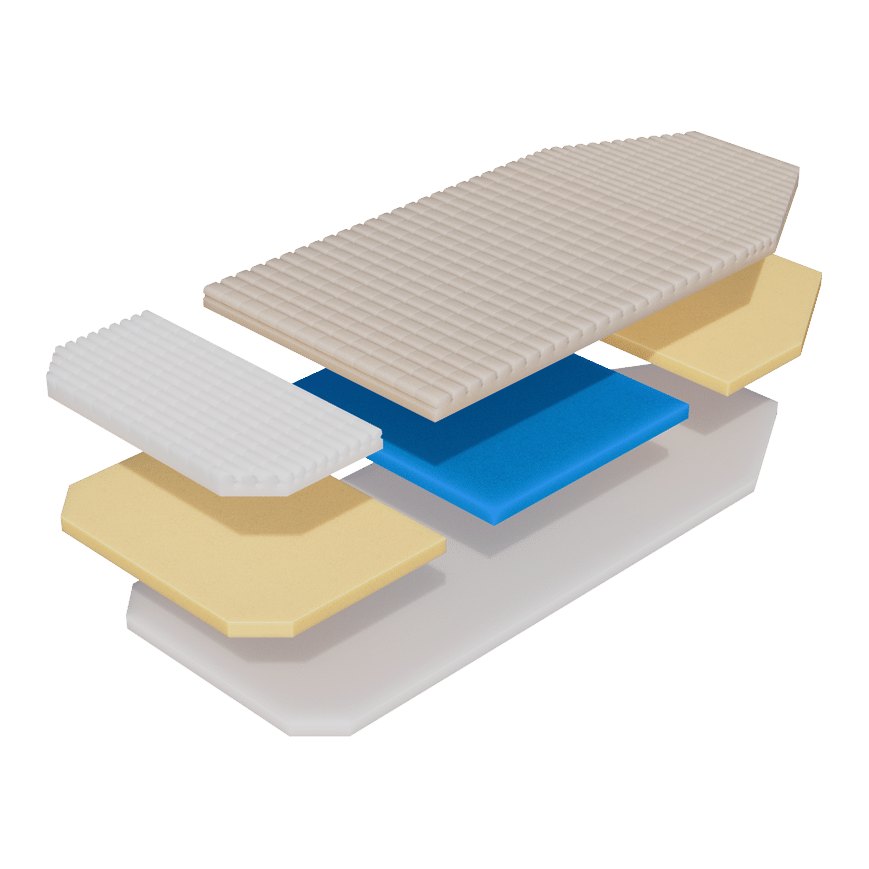

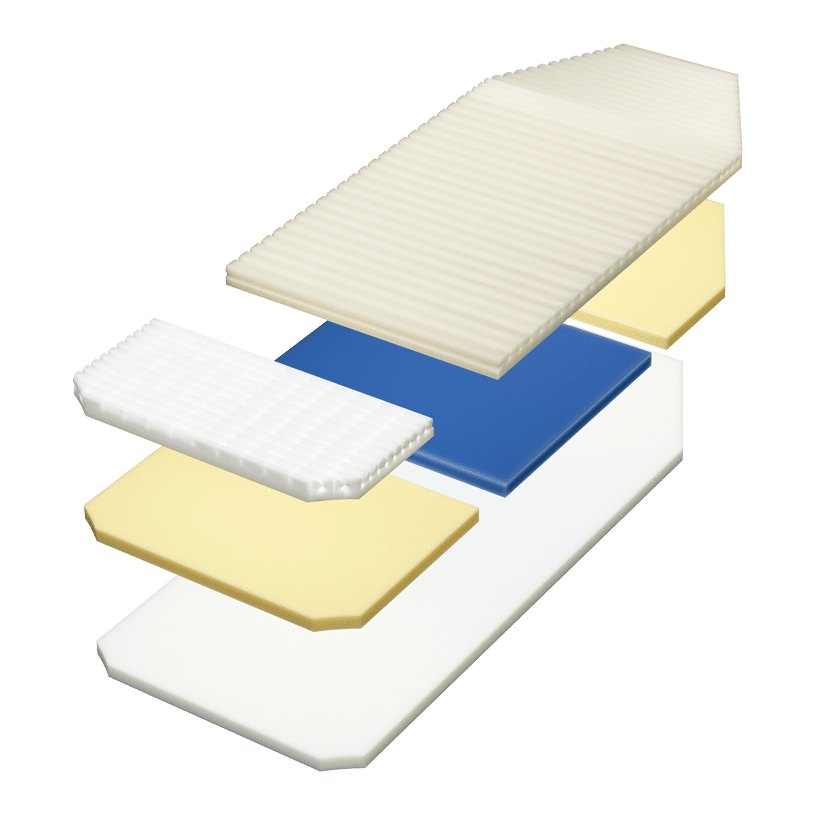

- UHP 500 foam seat section, Geo-Matt articulating-cell top, softer heel section
- Cover
- LifeSpan antimicrobial stretch cover, flapped zipper, silicone shear bands, hook-strip base
- Cover care
- Cleanable; resists bleach and other harsh disinfectants
- Mattress width
- 26" (66 cm)
- Mattress length
- 75" (191 cm)
- Mattress height
- 5" (13 cm)
- Warranty
- Mattress 3 years, cover 2 years
- Product type
- Stretcher mattress
Options and sizes can change some figures. Ask us to confirm yours before you order.
