Span America

Span America PressureGuard Protocol Powered Mattress, 7 in, 400 lb

The Span America PressureGuard Protocol is a powered air-and-foam mattress for a hospital or homecare bed. It alternates pressure or floats, and its coverlet moves moisture vapour away from the skin.

Key specifications All specifications
Sizes
35 in wide in 75, 80 or 84 in; 42 in wide in 80 or 84 in
Height
7 in (18 cm)
Modes
Alternating pressure on a 10-minute cycle, or powered float
Comfort
Levels 2 to 5, with Max Immersion under 120 lbs
Control unit
11.5 lbs, 110-120 V AC
Included
Mattress, coverlet and control unit
$ 5,942.33 $ 5,942.33

  • Size

What is included?

The mattress, its coverlet and the Protocol control unit. The bed frame and rails are separate.

Offers and rewards Applied in your cart at checkout.
  • Delivery and setup Across Toronto and the GTA: we set it up, show you how it works and service it at home or in our shop. Call (905) 798-1853
  • Safe checkout VISA Visa or Mastercard online, or pay in store when you visit us.
Brand
Span America
Barcode P7535-29 P7535-29

Description

The Span America PressureGuard Protocol is a powered air-and-foam mattress for a hospital or homecare bed. It alternates pressure or floats, and its coverlet moves moisture vapour away from the skin.

What does it do and how does it work?

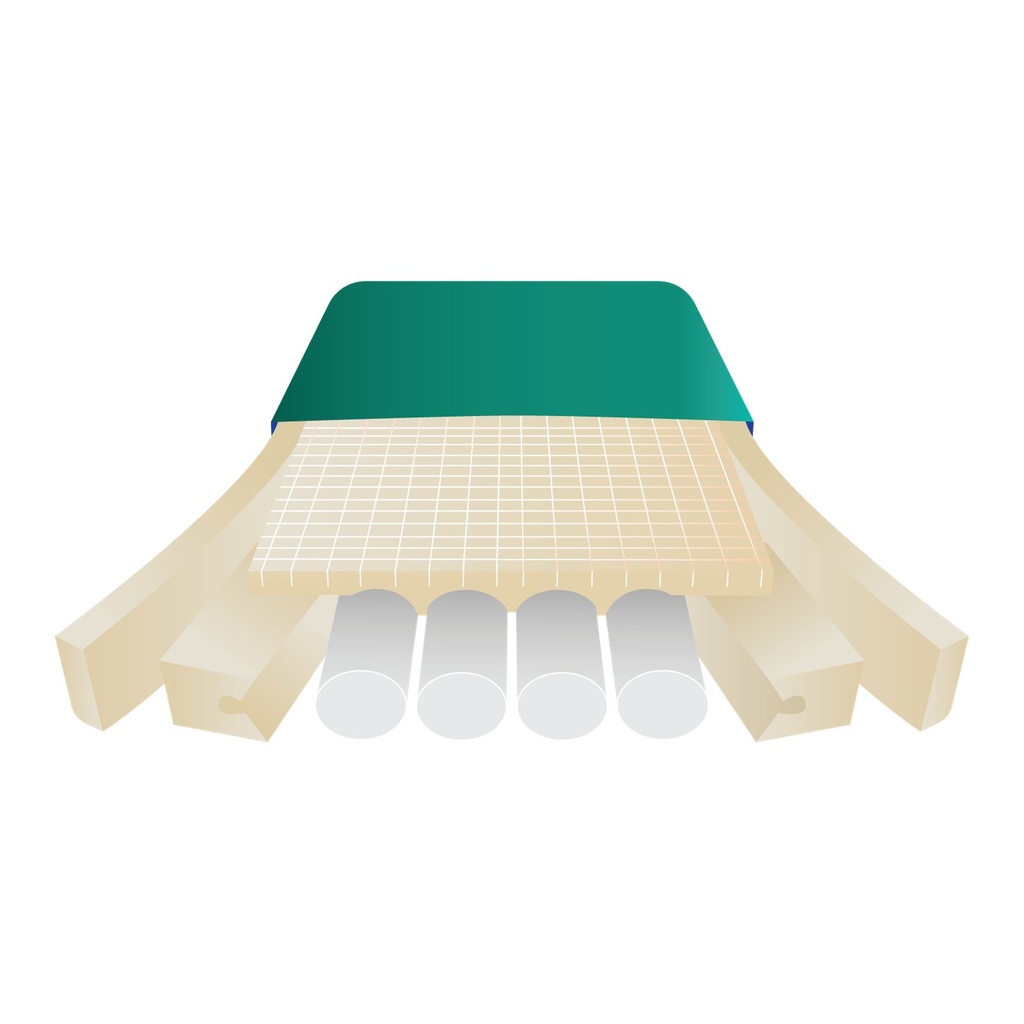

It combines head-to-foot air cylinders with a Geo-Matt foam top and an air-delivery coverlet.

  • Alternating pressure changes the load on a 10-minute cycle; Float mode gives powered flotation.
  • Auto Firm firms the surface for transfers, daily care and CPR, then returns to the selected mode.
  • Comfort levels run 2 to 5, with a Max Immersion setting for users under 120 lbs.
  • A low-pressure alarm sounds and the indicator lights if pressure drops.
  • The coverlet is vapour-permeable and fluid-proof, with the Air Diffusion Matrix moving moisture away.

Who is it for, and who should choose something else?

It suits a person whose care plan needs powered pressure redistribution and microclimate management.

  • Span lists the Protocol for treatment of stage I to IV pressure ulcers and prevention in high-risk patients; the clinician decides.
  • Choose a foam mattress if no powered therapy is needed; the Gravity 7 needs no power.
  • Choose a different powered surface if the care plan calls for lateral rotation.

Will it fit?

Match the width and length to the deck; every size is 7 in high.

  • The 35 in width comes in 75, 80 and 84 in lengths; the 42 in width comes in 80 and 84 in.
  • The 7 in (18 cm) height sets the transfer height and the rail gaps. Health Canada advises gaps under 120 mm (4 3/4 in) in zones 1 to 3 and 60 mm (2 3/8 in) in zone 4.
  • The bed's safe working load applies, and the mattress rating for your width is confirmed on the order.
  • A used mattress cannot be returned under our return policy.

Using it day to day

Hang the control unit on the bed frame with its mounting hooks.

  • Choose alternating or float, then set the comfort level.
  • The unit can maintain inflation during a power interruption or transport.
  • Wipe the coverlet in place, or unzip it, machine wash and air dry.

What does it work with, and what are its limits?

It needs the Protocol control unit and its coverlet.

  • It is a powered surface; alternating and float therapy stop without power.
  • The raised-perimeter versions are separate codes.
  • Span states the Safety Edge helps minimize fall and entrapment risk; it is not a bed rail.

How does it compare?

The Med Aire Plus is a different powered alternating system. The Gravity 7 is foam only. See hybrid mattresses.

Frequently asked questions

Does it go flat when unplugged?

It can maintain inflation during a power interruption or transport.

Is the raised side edge included?

No. The raised-perimeter versions are separate codes; the five flat sizes are 7 in high.

Can the coverlet go in the washing machine?

Yes. Unzip it, machine wash, and air dry. Day to day it wipes clean.

What pressure ulcers is it for?

Span lists stage I to IV treatment and high-risk prevention. The clinician decides if it fits the person.

Funding may help: see who may help pay.

Specifications

Construction
Head-to-foot air cylinders under a Geo-Matt foam top
Cover
Vapour-permeable, fluid-proof coverlet with Air Diffusion Matrix
Cover care
Wipe clean, or machine wash the coverlet and air dry
Therapy modes
Alternating pressure on a 10-minute cycle, or powered float
Comfort settings
Levels 2 to 5, with Max Immersion under 120 lbs
Alarms
Low-pressure audible alarm and indicator
CPR release
Auto Firm function
Edge support
Safety Edge; raised perimeter is a separate code
Power failure protection
Maintains inflation during a power interruption or transport
Power supply
110-120 V AC, 60 Hz
Pump weight
11.5 lbs (5.2 kg)
Mattress width
35" (89 cm) or 42" (107 cm)
Mattress length
75" (191 cm), 80" (203 cm) or 84" (213 cm)
Mattress height
7" (18 cm)
Product type
Hybrid Mattress

Options and sizes can change some figures. Ask us to confirm yours before you order.
