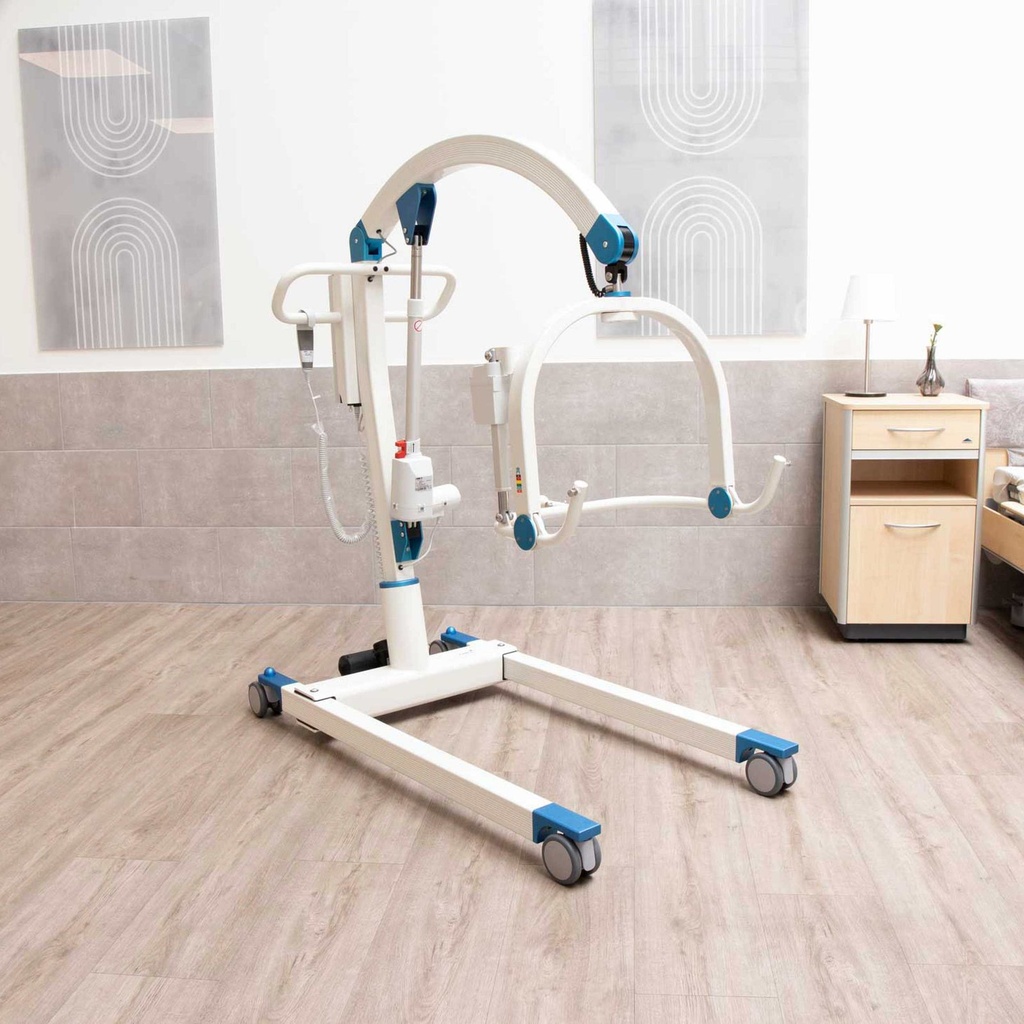

The Beka CARLO Alu Comfort EP 230 (item 925007008) is a 230 kg electric floor lift with a 4-point EP clip bar and electrical positioning.
What does it do and how does it work?
It raises a person from lying, sitting or the floor and moves them indoors on smooth, level floors.
- The carry bar lowers to the floor for a floor pickup and has electrical positioning on the 4-point EP bar.
- The legs spread with power, and two of the four double castors have brakes.
- A cable hand control and dual controls raise the bar and spread the legs.
- The battery charges on board.
Who is it for, and who should choose something else?
It suits a heavier resident of up to 230 kg (507 lb) who is moved with a clip sling.
- A clinician assesses the person first; osteoporosis, spinal damage, osteogenesis imperfecta, mental confusion or epilepsy need the attending physician's agreement.
- It moves on smooth, level indoor floors, not slopes or rough ground.
- The 185 kg model is item 925006008; the Classic version takes loop slings.
Will it fit?
The lift is 140 cm (55.1 in) long and 70 cm (27.56 in) wide with the legs closed.
- With the legs open it is 124 cm (48.8 in) wide outside.
- Height runs from 134 to 217 cm (52.8 to 85.4 in), and the turning radius is 147.5 cm (58.1 in).
Which sling fits?
The EP bar takes Beka clip slings: nylon transfer, bathing, toilet and double-leg amputee styles.
- Clip sizes run S to XXL: S 35-65 kg (red), M 55-85 kg (yellow), L 75-125 kg (green), XL 120-160 kg (blue), XXL 160-210 kg (orange).
- The slings are nylon and washable at 60 C (140 F).
- It does not take loop slings; the Classic version is the loop-bar lift.
Using it day to day
Charge the battery fully before the first use and check that the emergency stop is released.
- Brake the castors, spread the legs, lower the bar and attach the sling clips.
- Manual and electrical emergency lowering both work if the power fails.
- Do not use the lift while the battery is charging, and do not tilt it more than 5 degrees when crossing a threshold.
What about the scale?
The Comfort EP can carry a digital patient scale, and the calibrated scale for the 230 is part 925001208, rated to 250 kg (551 lb).
- The scale is separate from the base lift code 925007008.
- Tell us the carton you need and we confirm the S-code contents.
What care does it need?
Wipe the frame with a soft cloth and soapy water, and disinfect the surfaces with isopropyl alcohol; do not use abrasives or solvents.
- The battery is a 24 V lead acid pack rated 2.9 Ah, with a working life of up to five years.
- Recharge a stored battery every six months.
How does it compare?
- CARLO Comfort EP 185: the lower-capacity model.
- Carina 350: another powered floor lift.
How do funding and fitting work?
Funding may help: see who may help pay.
We assemble the lift at home and show the controls and emergency lowering across Toronto and the GTA. A free home assessment can check the room first.
Frequently asked questions
How is 925007008 different from 925006008?
925007008 is the 230 kg Comfort EP; 925006008 is the 185 kg model.
Is the 230 scale included?
No. The 925001208 scale is a separate part, rated to 250 kg (551 lb).
Does it charge on the lift?
Yes, the Comfort 230 has on-board charging; the two-battery wall-charger pack is 925007018.
Specifications
- Weight capacity
- 230 kg (507 lb)
- Product weight
- Approx. 65 kg (143 lb) depending on variant
- Overall width
- 70 cm (27.56 in) closed; 124 cm (48.8 in) open
- Overall height
- 134 to 217 cm (52.8 to 85.4 in)
- Overall length
- 140 cm (55.1 in)
- Sling attachment
- 4-point EP spreader bar with electrical positioning; clip slings
- Lifts from floor
- Yes, carry bar lowers to the floor
- Controls
- Cable hand control and dual controls
- Emergency lowering
- Manual and electrical
- Battery
- 24 V lead acid, 2.9 Ah, rechargeable
- Water resistance
- IPX4
- Minimum lift height
- Carry bar lowers to 20 cm (7.9 in) from the floor
- Maximum lift height
- Carry bar to 158 cm (62.2 in) from the floor
- Lifting range
- 1,400 mm (55.12 in) with the hanger bar
- Base width closed
- 70 cm (27.56 in)
- Base width open
- 124 cm (48.8 in)
- Base widening
- Powered leg spread
- Leg opening
- 104 cm (40.94 in) inside with legs spread
- Compatible with
- Beka clip slings: transfer, bathing, toilet and double-leg amputee
- Battery charger
- On-board; 100-240 V AC input, 24 V DC output
- Product type
- Electric floor lift
Options and sizes can change some figures. Ask us to confirm yours before you order.
