Sunrise Medical

Empulse M90 powered rear wheels

Sunrise Medical Empulse M90 wheels put the motor in each hub, so a manual chair gains power without a unit on the side. They suit a rider who wants help on distance and hills and still wants to push.

Key specifications All specifications
Weight capacity
265 lb (120 kg)
Product weight
26.2 lb (11.9 kg) for both wheels with their batteries
Each wheel
11.7 lb (5.3 kg) without the battery; each battery is 1.3 lb (0.6 kg)
Range
Up to 9.3 mi (15 km) on the ISO 7176-4 test
Top speed
3.7 mph (6 km/h)
Wheel size
24 in (540 mm) only
Quote only

Priced by quote: your written quote confirms current pricing, options and availability.

What is included?

Two wheels with a 4.0 Ah battery in each, the control unit and two mounts, quick-release axles, a retrofitting kit, charging cables and a docking charger. You keep your own tires. Ask us for a quote.

  • Delivery and setup Across Toronto and the GTA: we set it up, show you how it works and service it at home or in our shop. Call (905) 798-1853
  • Safe checkout VISA Visa or Mastercard online, or pay in store when you visit us.
Brand
Sunrise Medical
Category
Power Assist

Description

Sunrise Medical Empulse M90 power-assist wheels replace the rear pair on a manual wheelchair, for a rider who wants powered help and still wants to push.

What does it do and how does it work?

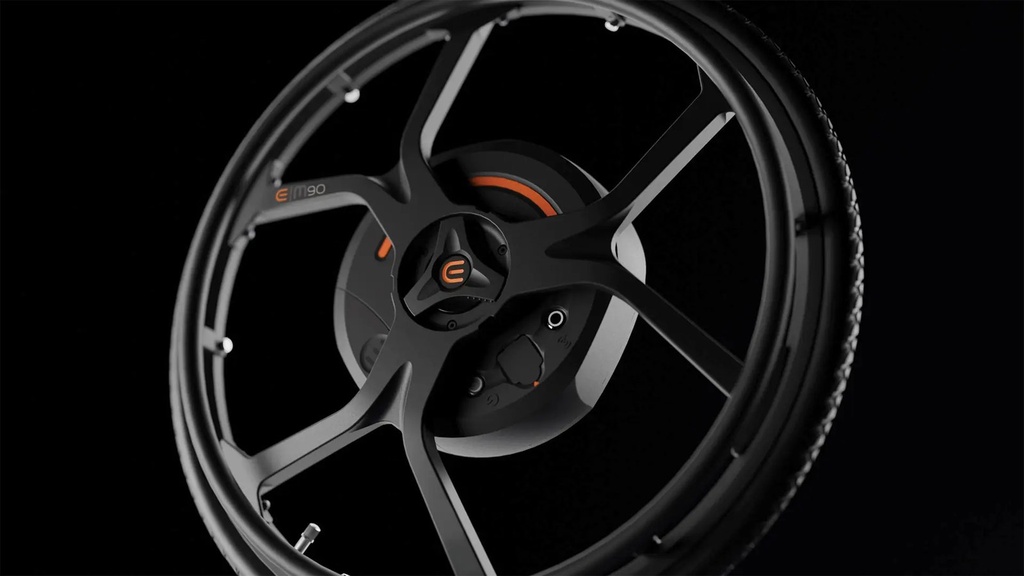

  • Each 24 in (540 mm) wheel has a 150 W motor in the hub, so nothing hangs off the side.

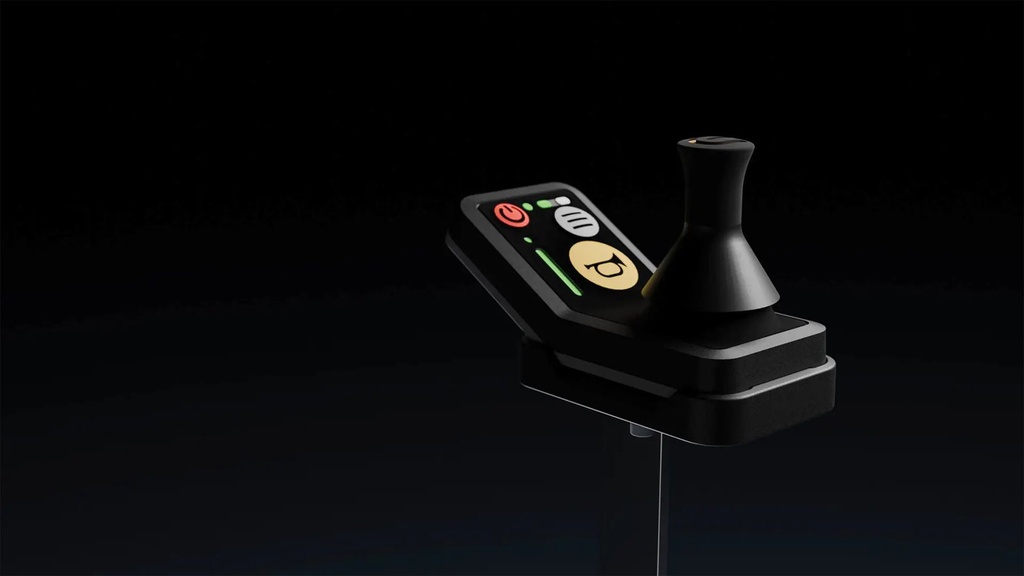

  • Steer with the handrims or the removable all-way toggle. A switch on each wheel sets free-roll.
  • Each battery is 4.0 Ah, 1.3 lb (0.6 kg), 86.4 Wh at 21.6 V. A full charge takes about 6 hours.

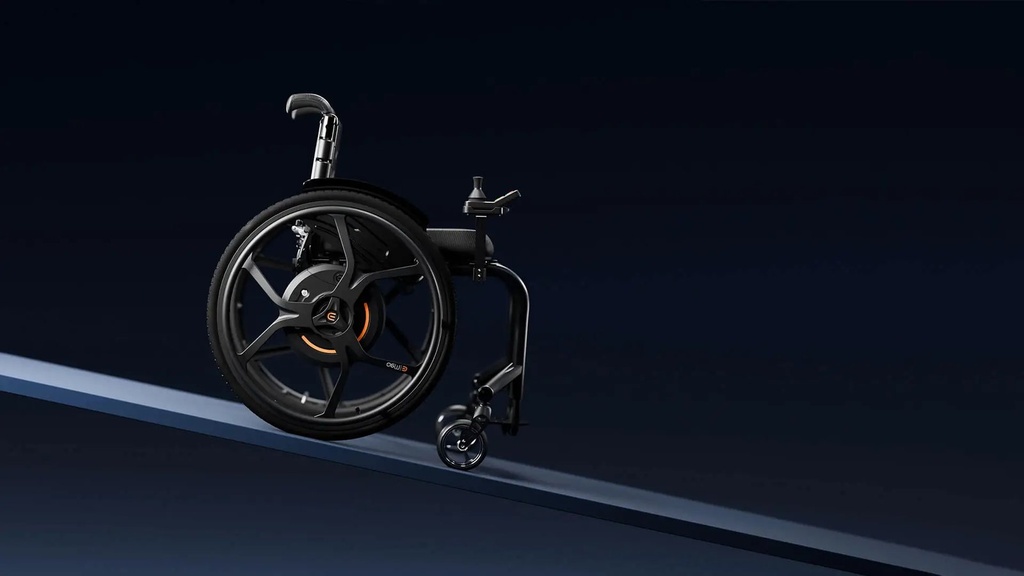

  • Top speed is 3.7 mph (6 km/h), and range is up to 9.3 mi (15 km). Rated slope is 3 degrees. Short climbs are tested to 6 degrees.
  • The iPhone and Android app sets speed, torque and slope, and shows battery status.

Who is it for, and who should choose something else?

  • It suits an active rider who can steer, slow and stop the chair, including if the motor brakes fail.
  • Choose it for distance and hills, then free-roll when you do not want power.
  • Choose the Empulse R20 if a caregiver does the pushing.
  • It is not for a carbon frame, a carbon camber tube, rear suspension, drum brakes or one-arm drive.

Will it fit?

  • Rear wheels must be 24 in (540 mm). Install sets camber to 0 degrees.
  • Handrims must be tab-mount, standard or wide, not narrow. Leave 1.2 in (30 mm) on the frame for the controller.
  • Casters of 5 in (127 mm) or larger are suggested. The user limit is 265 lb (120 kg), and rear seat height should be at least 16 in (41 cm).
  • Tell us the chair model and we confirm fit before you order.

Using it day to day

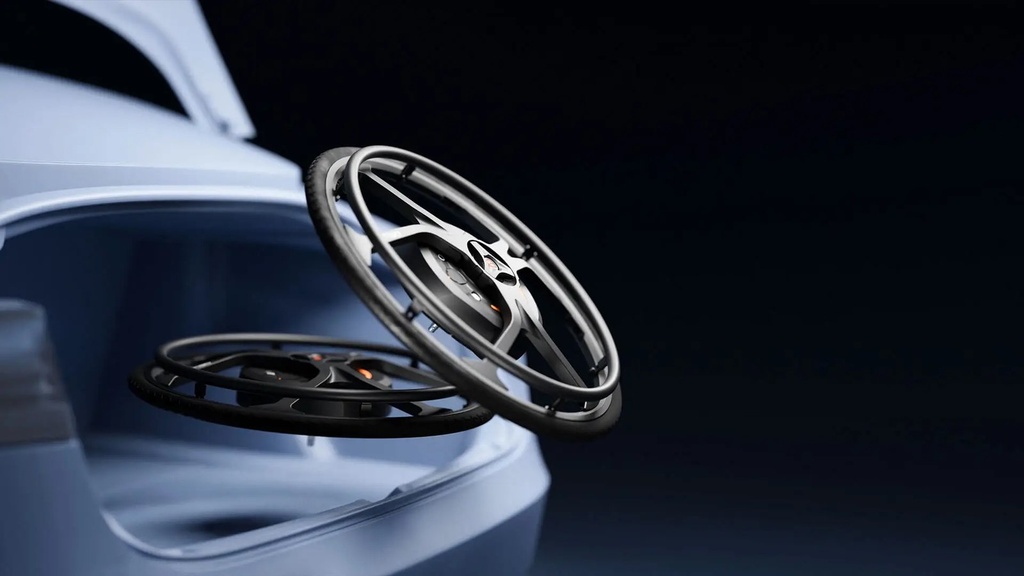

  • Quick-release axles lift the wheels off for a car. Charge the packs on the docking charger, off the chair, in a ventilated space and away from flames.
  • The housings are IP64: dust tight and safe from splashes, not from submersion.

What does it work with, and what are its limits?

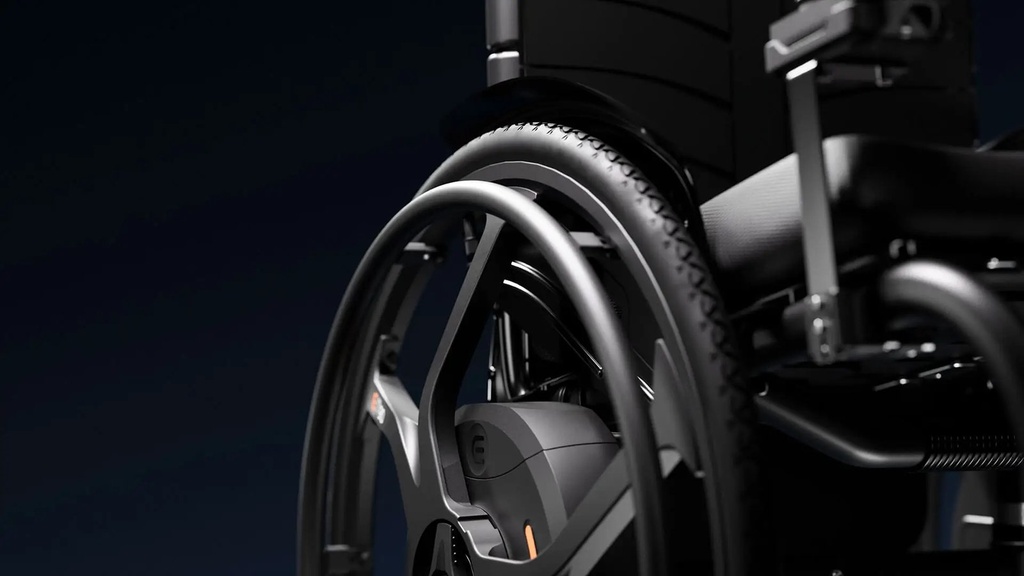

You keep your own 24 in tires. On most chairs the width stays the same. If an armrest meets the motor, spacers shift that wheel out, up to 2 in (50 mm).

  • Checked chairs are the Quickie Nitrum, Quickie 2, 5R, QRi and QS5 X, inside each model's seat-height window. Other brands are not on that list yet.
  • Warranty is 24 months for manufacturing defects, 12 months for Sunrise parts and electronics, and 6 months for batteries and chargers. Labour is extra, and it stays with the first owner.

How does it compare?

The Empulse R90 is one push unit under the chair, not powered wheels. The Klaxon Twist mounts at the front or the rear and goes faster on a handlebar. See other power-assist devices, or book a free home assessment.

Frequently asked questions

Can I fly with the wheels?

Hold the power button on each wheel for 5 seconds to enter flight mode. Each pack is 86.4 Wh and UN38.3 certified. The airline still decides.

Do I need the app to drive?

No. Handrims or the toggle drive the wheels. The app sets the presets and shows the battery level.

What if a battery runs out on a hill?

Switch both wheels to free-roll and push, the same way you would on a manual chair.

Are the tires in the box?

No. You keep the 24 in tires you already use. A spare battery is not in the standard kit either.

Funding may help: see who may help pay.

Specifications

Weight capacity
265 lb (120 kg)
Product weight
26.2 lb (11.9 kg) for both wheels with batteries
Transport weight
23.4 lb (10.6 kg) for both wheels without batteries
Rear wheel size
24 in (540 mm) only
Caster size
Any size; 5 in (127 mm) or larger suggested
Overall width
Usually unchanged; spacers can add up to 2 in (50 mm)
Top speed
3.7 mph (6 km/h)
Brakes
Regenerative braking, up to 18% recovery
Battery
4.0 Ah lithium-ion in each wheel, 1.3 lb (0.6 kg), 86.4 Wh, 21.6 V
Mounting
Replaces the rear wheels and sets camber to 0 degrees
Compatible with
Tab-mount handrims in a standard or wide position; not narrow
Range
Up to 9.3 mi (15 km), ISO 7176-4
Attachment
Replaces the rear wheels. 24 in (540 mm) only, and the install sets camber to zero
Wheel weight
11.7 lb (5.3 kg) each, without the battery
Rated slope
3 degrees; short climbs tested to 6 degrees
Warranty
24 months manufacturing defects; 12 months Sunrise parts and electronics; 6 months batteries and chargers
Product type
Power-assist rear wheels with the drive in the hubs

Options and sizes can change some figures. Ask us to confirm yours before you order.

Documents

Delivery and service

Delivery and setup

We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.

Service and repairs

Our technicians service what we sell, at home or in our shop.

Try before you buy

Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.

Warranty

Warranty details

Sunrise Medical warrants the Empulse M90 power assist wheels against defects in material and workmanship, for the first consumer purchase through an authorized Sunrise Medical dealer in Canada or the USA. Not transferable.

  • The device: 24 months after delivery, for manufacturing defects.
  • Sunrise-made parts, including the motor and electronics: 1 year.
  • Batteries and chargers: 6 months.
  • Labour to repair, remove or install parts is paid by the owner.
  • Not covered: normal wear on tires and tubes, upholstery and chargers, and damage from neglect, accident, misuse, improper repair, unapproved changes or exceeding the weight limit.

Questions about this product?

Talk to our team, try it in a showroom, or book a free home assessment. We help with sizing and funding.
