Sunrise Medical

Empulse R20 Assist for Caregivers

The person in the chair does not drive this. Empulse R20 (EISP9) adds power behind a manual wheelchair, and the caregiver pushes from the handles.

Key specifications All specifications
Who pushes
The attendant, using the control on the push handles
Weight capacity
Rider 375 lb (170 kg); chair, rider, and cargo together 419 lb (190 kg)
Product weight
9.9 lb (4.5 kg) with the battery
Range
Up to 9 miles (14.5 km), and it changes with the rider, the terrain, the temperature, and the stops
Top speed
3.1 mph (5.0 km/​h), in steps of 1.2 mph (1.9 km/​h), 2.3 mph (3.7 km/​h), and 3.1 mph
Battery
Lithium-ion 36 V, 5.8 to 6 Ah (209 to 216 Wh)
Quote only

Priced by quote: your written quote confirms current pricing, options and availability.

What is included?

The drive unit, lithium-ion battery, attendant control, motor controller, backpack, charger, and the frame clamps for the chair we confirm.

  • Delivery and setup Across Toronto and the GTA: we set it up, show you how it works and service it at home or in our shop. Call (905) 798-1853
  • Safe checkout VISA Visa or Mastercard online, or pay in store when you visit us.
Brand
Sunrise Medical
Category
Power Assist

Description

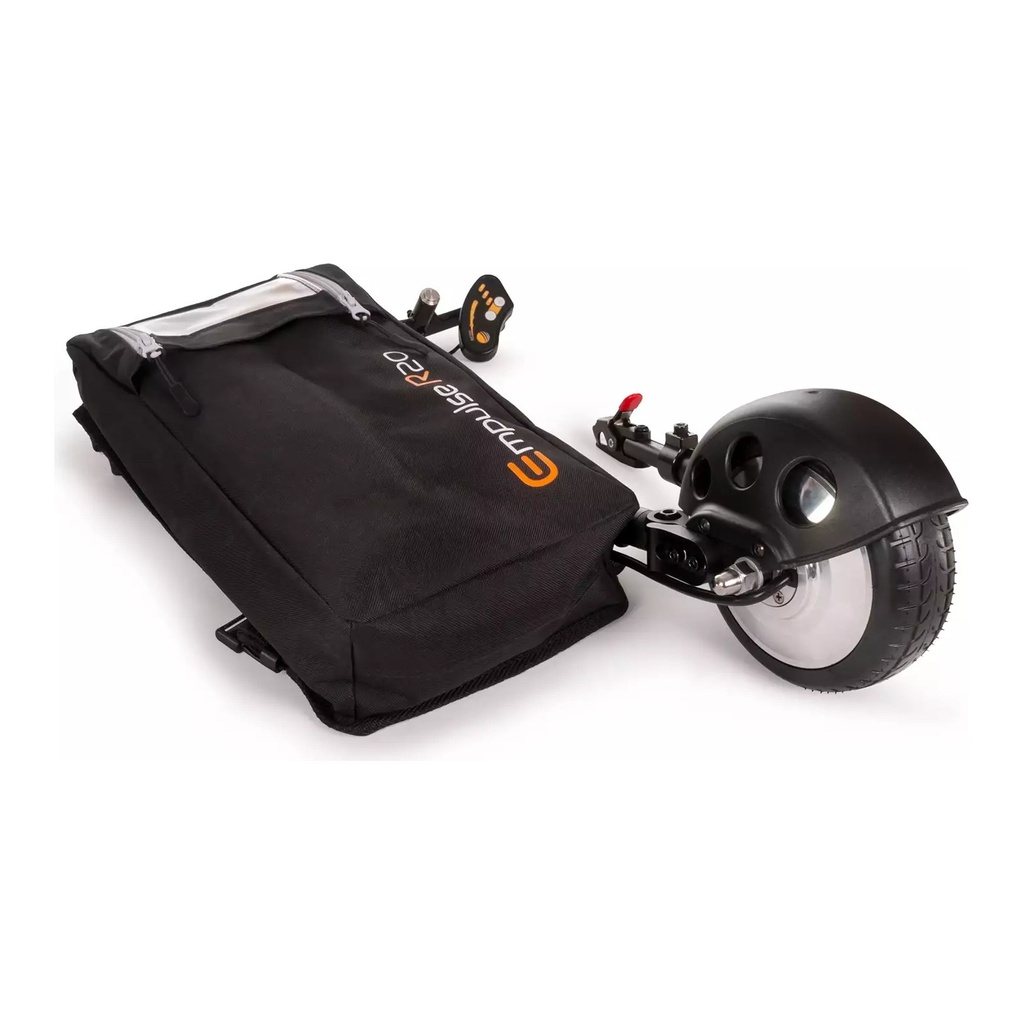

The Empulse R20 (model EISP9) is a rear power assist that adds motor power to a manual wheelchair for the caregiver who pushes it.

What does it do and how does it work?

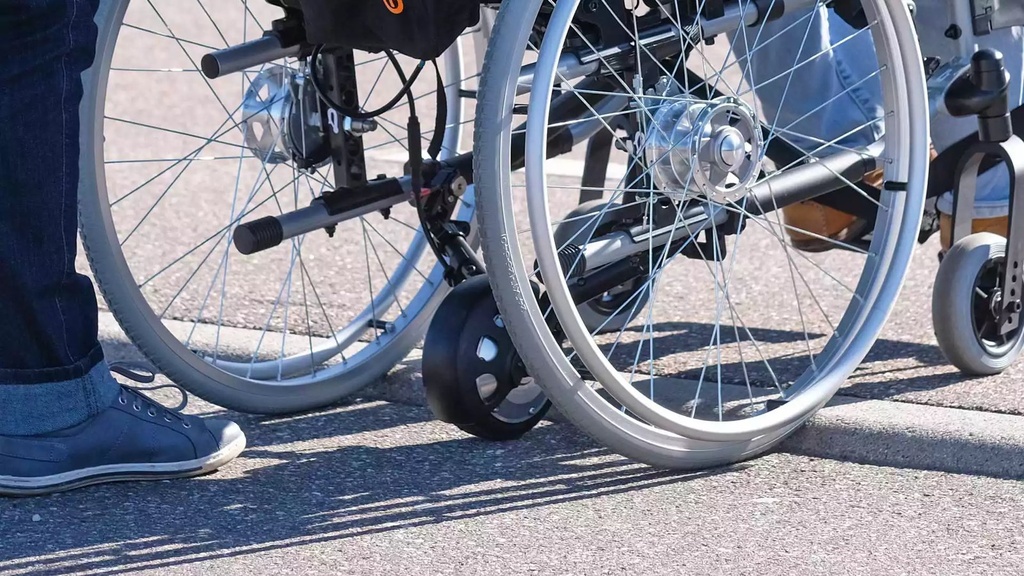

  • A 250 W motor in a drive wheel, for slopes up to 10 degrees.

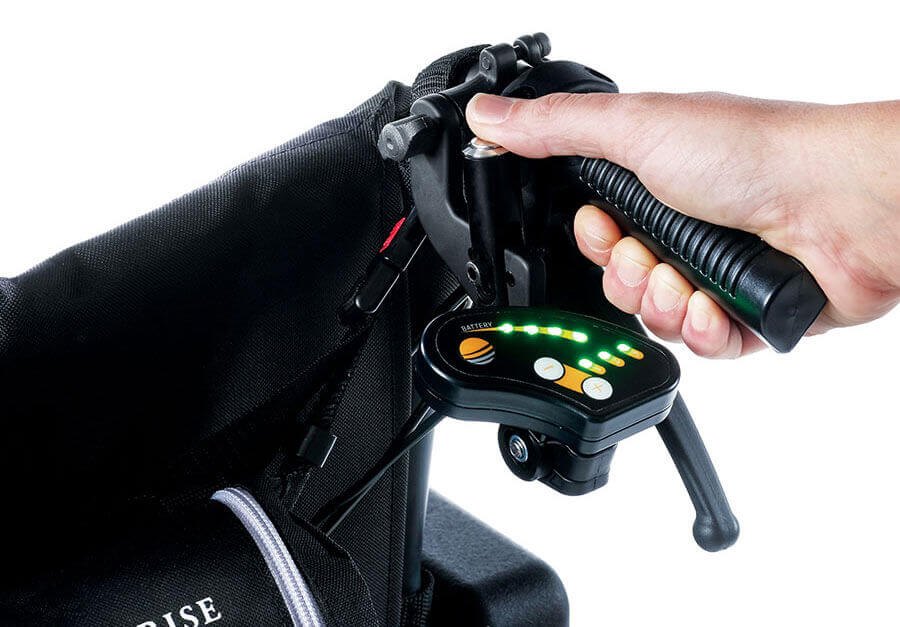

  • The attendant controls it from the push handles, with three speeds: 1.2, 2.3 and 3.1 mph (1.9, 3.7 and 5.0 km/h).
  • Free-run mode lets the rider self-propel the handrims without taking the unit off.
  • Battery: 36 V, 5.8 to 6 Ah (209 to 216 Wh), for up to 9 miles (14.5 km) depending on weight, terrain, temperature and stops.
  • The unit weighs 9.9 lb (4.5 kg) with the battery, in a backpack.

Who is it for, and who should choose something else?

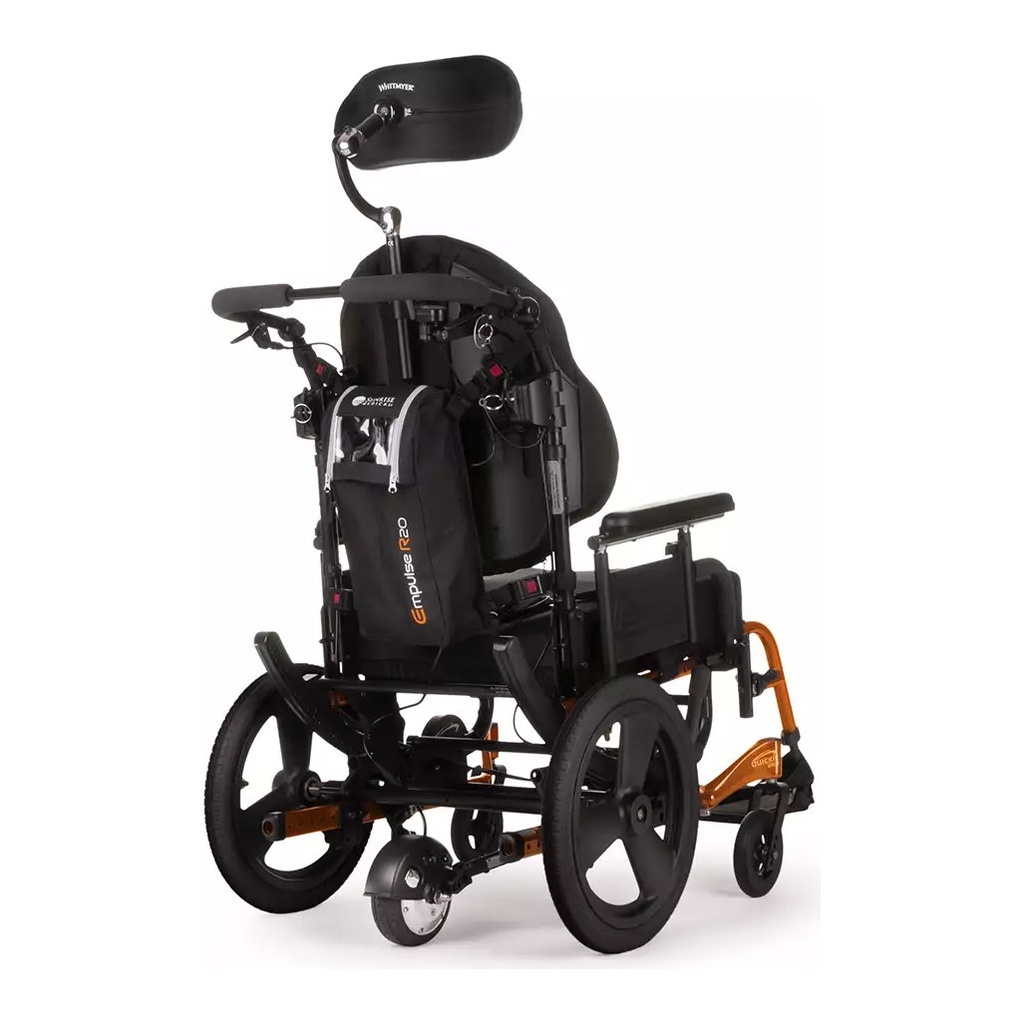

  • A caregiver who pushes a folding or tilt-in-space manual chair on pavements, paths and ramps.
  • The rider does not drive it. A rider who steers: the Empulse F35 or the StreetJet.
  • A rider-controlled push from behind: the Empulse R90. Powered rear wheels: the Empulse M90.

Will it fit the chair?

  • Seat width 13 to 23 in (33 to 58 cm); seat-to-floor height 15.5 to 20.5 in (39 to 52 cm).
  • Docking A fits 22 to 28 mm tubes and docking B fits 29 to 32 mm, with the arm set between 20 and 45 degrees.
  • It fits most folding and tilt-in-space chairs with 12 to 26 in rear wheels; tell us the chair model and we confirm the clamp.

Using it day to day

  • The caregiver pushes and sets the speed; the rider can still use the handrims in free-run mode.
  • The R20 has no brake of its own; the caregiver stops and parks with the wheelchair brakes.
  • Remove the drive unit before the chair goes into a vehicle; it is not tested while attached.
  • Charge with the supplied charger and store at about three-quarters charge, at 50 to 59 F (10 to 15 C).

What does it work with, and what are its limits?

  • The rider can weigh up to 375 lb (170 kg); the chair, rider and anything carried together must stay under 419 lb (190 kg).
  • The device has no brake, and the rider must not operate it.
  • The unit must come off the chair for vehicle transport.
  • Warranty: 3 years on the motor and device, 1 year on the controller and electronics, 6 months on the battery and charger. See the Warranty tab.

Which version should I choose?

  • Docking A or docking B, chosen for the chair's tube diameter.
  • The kit includes the drive unit, battery, control, controller, backpack, charger and clamps.

How does it compare?

Frequently asked questions

Who actually pushes the R20?

The caregiver pushes, using the control by the push handles; the rider must not operate it.

Does the R20 have its own brake?

No. The caregiver uses the wheelchair brakes to stop and to park.

Can it stay on the chair in the car?

No. Remove the drive unit before the chair goes into a vehicle; it is not tested while attached.

Funding may help: see who may help pay.

Specifications

Weight capacity
Rider 375 lb (170 kg); combined load 419 lb (190 kg)
Product weight
9.9 lb (4.5 kg) with the battery
Rear wheel size
12, 16, 22, 24, 25 and 26 in (304, 406, 559, 610, 635 and 660 mm)
Top speed
3.1 mph (5.0 km/h), in steps of 1.2, 2.3, and 3.1 mph
Motor
250 W, 36 V, 15 A maximum
Battery
Lithium-ion 36 V, 5.8 to 6 Ah (209 to 216 Wh)
Compatible with
Folding and tilt wheelchair frames
Battery charger
100-240 V AC, 50/60 Hz, 2000 mA; charge at 32 to 113 F (0 to 45 C)
Range
Up to 9 miles (14.5 km); varies with rider, terrain, temperature, and stops
Attachment
Rear push unit. Clamp A for 22-28 mm tubes, clamp B for 29-32 mm
Drive wheel
6 in (15.2 cm) black solid tire
Warranty
3 years on the device; 1 year on the controller and electronics; 6 months on batteries and chargers
Product type
Rear power assist that the caregiver pushes

Options and sizes can change some figures. Ask us to confirm yours before you order.

Documents

Delivery and service

Delivery and setup

We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.

Service and repairs

Our technicians service what we sell, at home or in our shop.

Try before you buy

Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.

Warranty

Warranty details

Sunrise Medical warrants the Empulse R20 caregiver power assist against defects in material and workmanship, for the first consumer purchase through an authorized Sunrise Medical dealer in Canada or the USA. Not transferable.

  • The device: 3 years after delivery, for manufacturing defects.
  • Sunrise-made parts, including the controller and electronics: 1 year.
  • Batteries and chargers: 6 months.
  • Not covered: normal wear on tires and tubes, upholstery and chargers, and damage from neglect, accident, misuse, improper repair, unapproved changes or exceeding the weight limit.

Questions about this product?

Talk to our team, try it in a showroom, or book a free home assessment. We help with sizing and funding.
