Sunrise Medical

Empulse R90 rear-mounted push assist

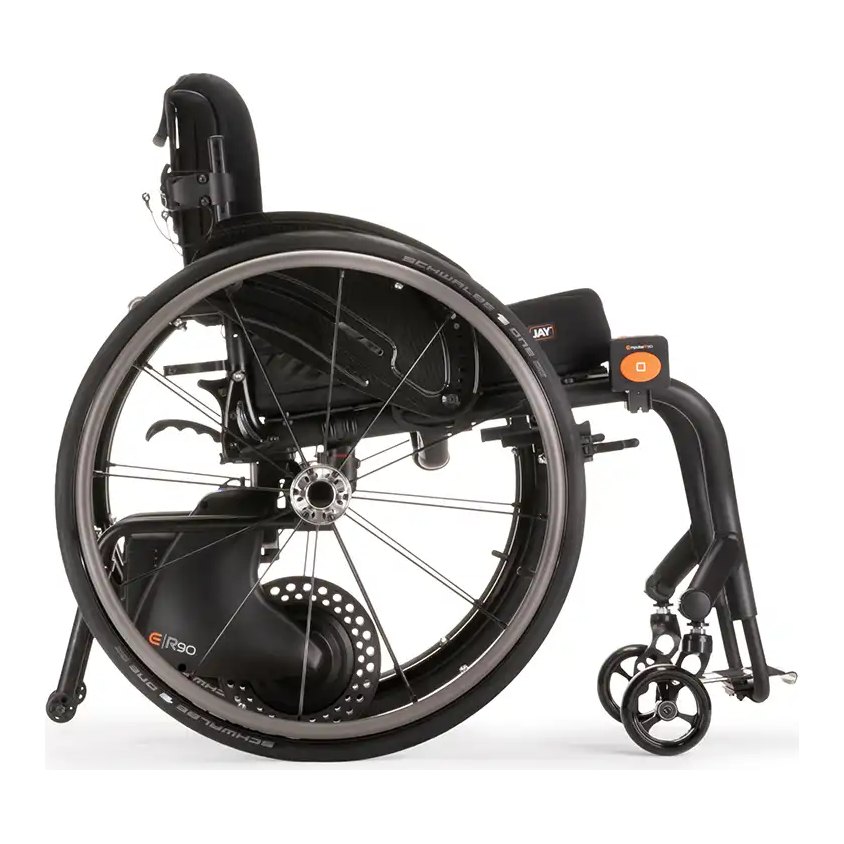

Sunrise Medical Empulse R90, model EISP8, mounts under the seat and pushes from one wheel. It suits a rider who wants help on distance and ramps and still wants to push the handrims.

Key specifications All specifications
Weight capacity
275 lb (125 kg)
Product weight
13.0 lb (5.9 kg) without the battery
Range
9.8 mi (15.7 km) with 2.5 Ah, or 19.5 mi (31.4 km) with 5 Ah
Top speed
5.5 mph (8.9 km/h)
Battery
Lithium-ion 36 V, 2.5 Ah or 5 Ah
Motor
250 W, 22 Nm
Quote only

Priced by quote: your written quote confirms current pricing, options and availability.

What is included?

The push unit, a 2.5 Ah battery, control box with short and tall plates, device charger, the receiver for your chair and a travel bag. The 5 Ah battery and docking charger are optional. Ask us for a quote.

  • Delivery and setup Across Toronto and the GTA: we set it up, show you how it works and service it at home or in our shop. Call (905) 798-1853
  • Safe checkout VISA Visa or Mastercard online, or pay in store when you visit us.
Brand
Sunrise Medical
Category
Power Assist

Description

Sunrise Medical Empulse R90, model EISP8, mounts under a manual wheelchair and pushes from one wheel, for a rider who still wants to push.

What does it do and how does it work?

  • A 250 W motor with 22 Nm of torque turns an 8 in (203 mm) airless wheel under the seat.

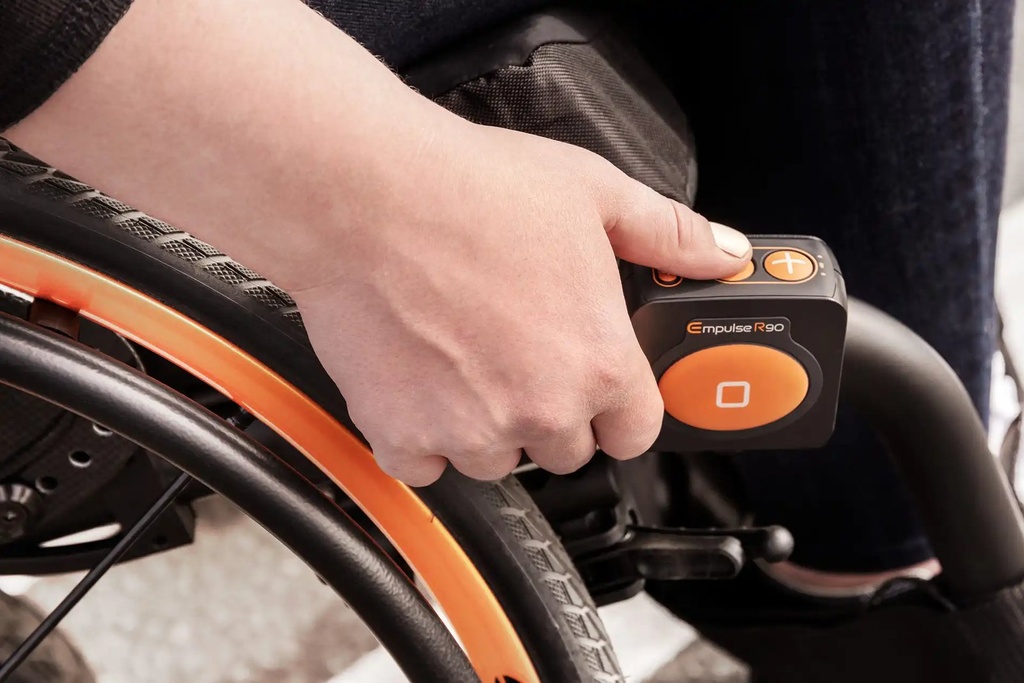

  • Plus on the control box holds your speed. A button lifts the drive wheel so it does not drag when you push.
  • Top speed is 5.5 mph (8.9 km/h). Above 6 km/h (3.7 mph) needs a signed approval and is not for every public path.
  • Range is 9.8 mi (15.7 km) on 2.5 Ah and 19.5 mi (31.4 km) on 5 Ah, on level ground. Rated slope is 6 degrees. The iPhone and Android app sets the profiles.

Who is it for, and who should choose something else?

  • It suits a rider who wants power for distance and ramps.
  • Choose the Empulse R20 if a caregiver does the pushing.
  • It is not for a carbon frame, a carbon camber tube, rear suspension, one-arm drive, or a rigid chair with a V-shaped axle.

Will it fit?

  • Rigid chairs need a straight camber tube, 22 to 45 mm, and camber of 0 to 3 degrees.
  • Rear wheels are 24, 25 or 26 in (540, 559 or 590 mm), matched to the ground-to-camber height. A 24 in wheel starts at 11.0 in (280 mm).
  • Folding chairs need 12 to 21 in (305 to 533 mm) between the inside axle plates. The receiver stays on, and the chair can still fold.
  • The user limit is 275 lb (125 kg). The control box needs 30 mm of frame. Use casters of 5 in (127 mm) or larger, and fit anti-tips.
  • Tell us the chair model and we confirm the bracket before you order.

Using it day to day

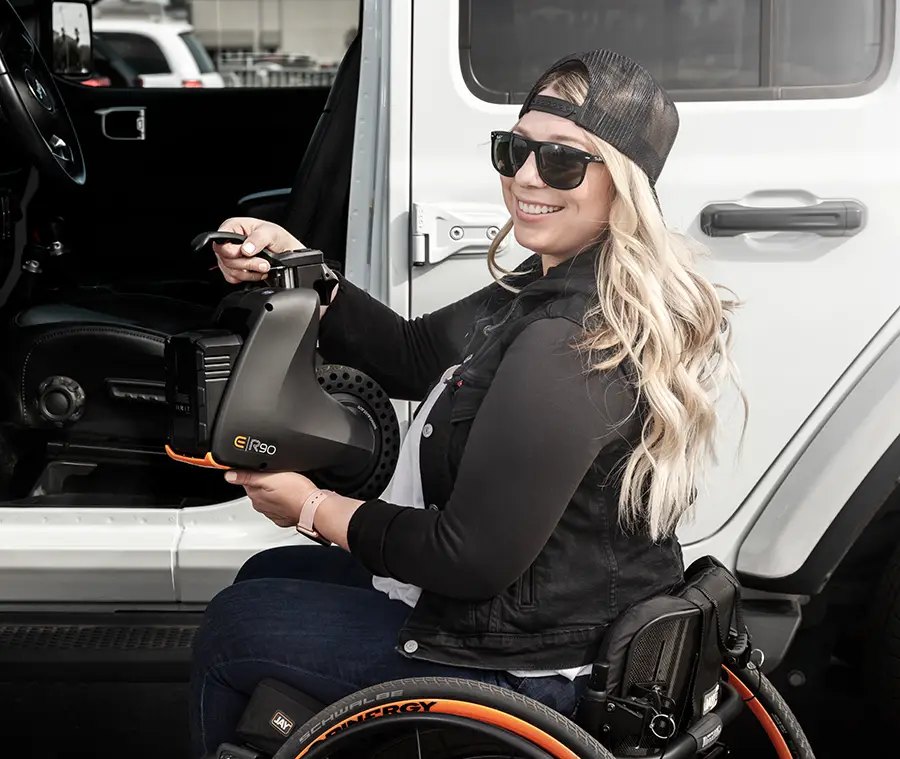

  • The unit is 13.0 lb (5.9 kg) without a battery, 14.5 lb (6.6 kg) with 2.5 Ah, and 15.6 lb (7.1 kg) with 5 Ah. The battery lifts out for carrying.
  • A 2.5 Ah pack charges in about 1 hour, a 5 Ah pack in about 2 hours. The 2.5 Ah pack is rated for cabin carry. Check with the airline before you fly.

Which version should I choose?

The 2.5 Ah pack in the box weighs 1.5 lb (0.7 kg). Choose the optional 5 Ah pack, 2.6 lb (1.2 kg), for the longer range.

What does it work with, and what are its limits?

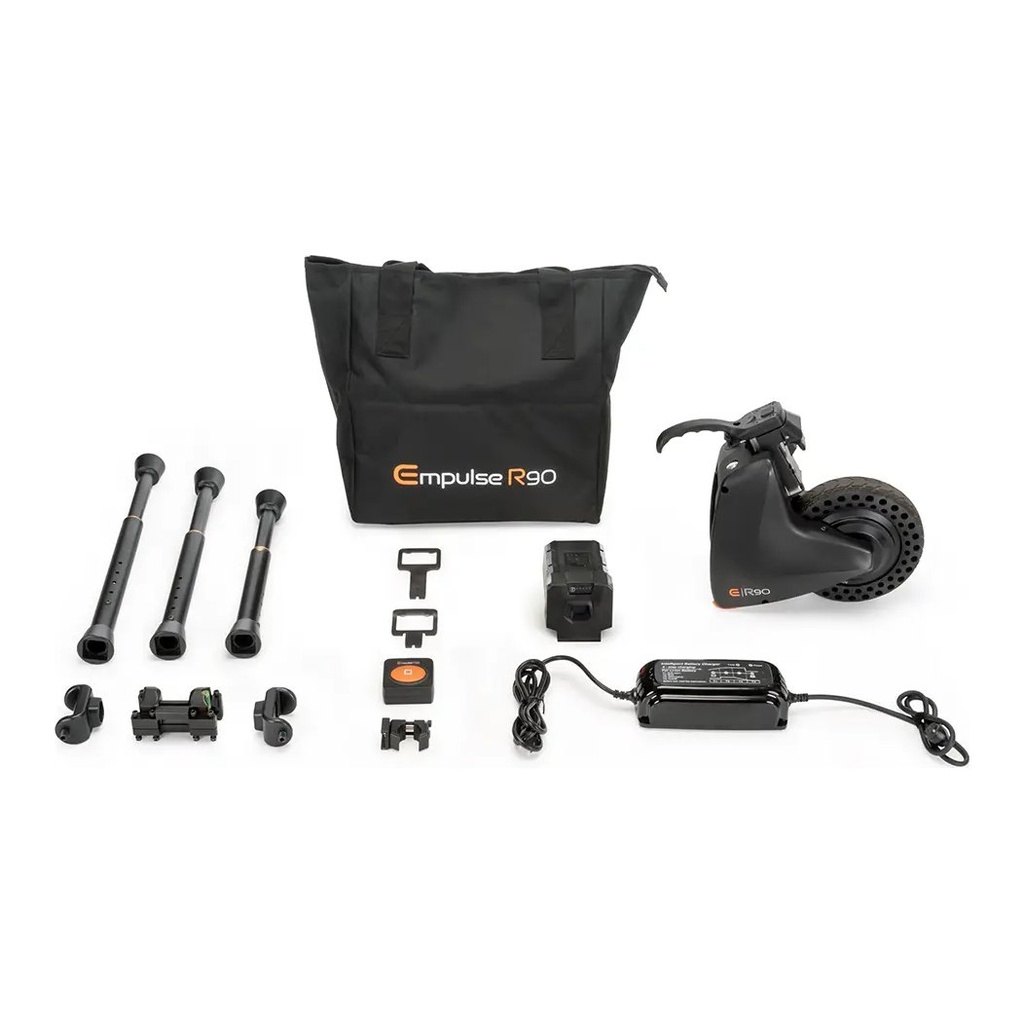

  • The box holds the push unit, a 2.5 Ah battery, the control box with short and tall plates, a device charger, the receiver for your chair, and a travel bag.
  • Warranty is 24 months on defects, 12 months on Sunrise parts and electronics, and 6 months on batteries and chargers. It stays with the first owner.

How does it compare?

The Empulse M90 drives from the rear wheels. The Klaxon Twist can sit at the front or the rear. See other power-assist devices, or book a free home assessment.

Frequently asked questions

Can I take the unit off and still fold?

Yes. The receiver stays on the chair and the push unit comes off. A folding chair can still fold.

Can I use the full 5.5 mph on a sidewalk?

Not by default. Above 6 km/h (3.7 mph) needs a signed approval, and some public paths do not allow it.

Is the bracket the same for every chair?

No. Rigid chairs use a camber-tube clamp. Folding chairs use a crossbar sized to the axle plates.

Funding may help: see who may help pay.

Specifications

Weight capacity
275 lb (125 kg)
Product weight
13.0 lb (5.9 kg) without the battery
Rear wheel size
Fits 24, 25 or 26 in chairs (540, 559 or 590 mm)
Caster size
5 in (127 mm) or larger suggested
Top speed
5.5 mph (8.9 km/h)
Folding
Receiver stays on the chair, and a folding chair can still fold
Motor
250 W, 22 Nm, 8 in (203 mm) airless drive wheel
Battery
Lithium-ion 36 V. 2.5 Ah is 1.5 lb (0.7 kg). 5 Ah is 2.6 lb (1.2 kg)
Mounting
V-Lock under the seat. Camber tube 22 to 45 mm. Camber 0 to 3 degrees. Straight axle
Compatible with
Rigid and folding manual chairs. Not carbon, rear suspension, one-arm drive, or a V-shaped axle
Range
9.8 mi (15.7 km) with 2.5 Ah; 19.5 mi (31.4 km) with 5 Ah, level, no extra resistance
Attachment
V-Lock under the chair. Camber tube 22-45 mm, camber 0-3 degrees. Folding chairs 300-530 mm between axle plates
Rated slope
6 degrees
Weight with 2.5 Ah
14.5 lb (6.6 kg)
Weight with 5 Ah
15.6 lb (7.1 kg)
Axle plate spacing
Folding chairs: 12 to 21 in (305 to 533 mm) between the inside axle plates
Warranty
24 months manufacturing defects; 12 months Sunrise parts and electronics; 6 months batteries and chargers
Product type
Rear power-assist unit that mounts under a manual wheelchair

Options and sizes can change some figures. Ask us to confirm yours before you order.

Documents

Delivery and service

Delivery and setup

We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.

Service and repairs

Our technicians service what we sell, at home or in our shop.

Try before you buy

Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.

Warranty

Warranty details

Sunrise Medical warrants the Empulse R90 power assist against defects in material and workmanship, for the first consumer purchase through an authorized Sunrise Medical dealer in Canada or the USA. Not transferable.

  • The device: 24 months after delivery, for manufacturing defects.
  • Sunrise-made parts, including the motor and electronics: 1 year.
  • Batteries and chargers: 6 months.
  • Labour to repair, remove or install parts is paid by the owner.
  • Not covered: normal wear on tires and tubes, upholstery and chargers, and damage from neglect, accident, misuse, improper repair, unapproved changes or exceeding the weight limit.

Questions about this product?

Talk to our team, try it in a showroom, or book a free home assessment. We help with sizing and funding.
