Description

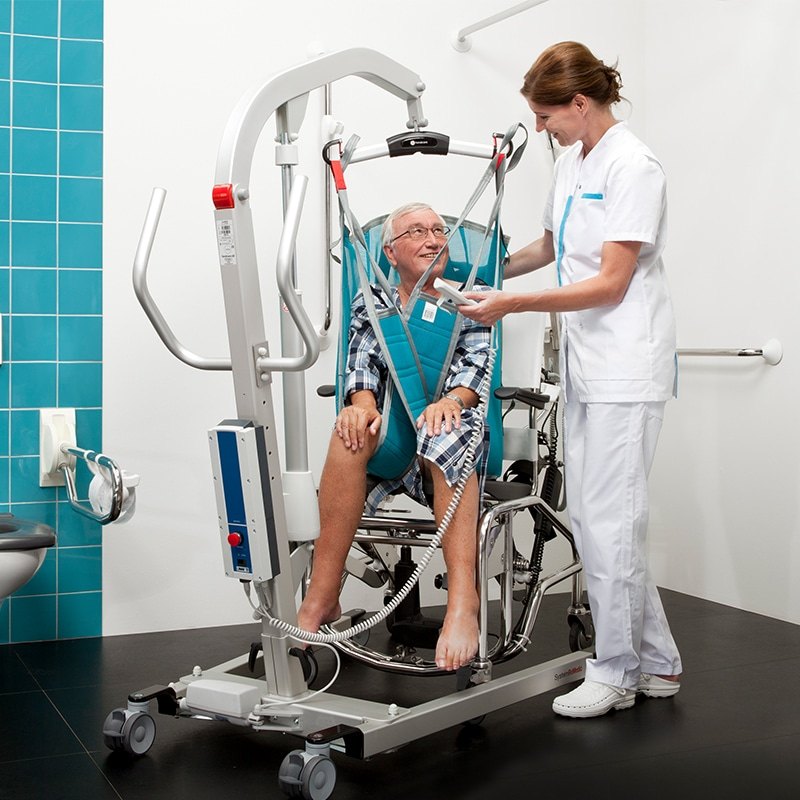

Item 60100002 is the Eva450EE for transfers up to 450 lb (205 kg), including a lift from the floor when the mast position allows it.
Who is this Eva for?
- A person up to 450 lb (205 kg) who transfers on a carry bar with safety latches.
- Not item 60100006. That code is the same 450 lb lift with low front casters.
- Not the Eva600EE. Those codes are 60100003 and 60100010, and they stop at 600 lb.
Will the base fit the room?

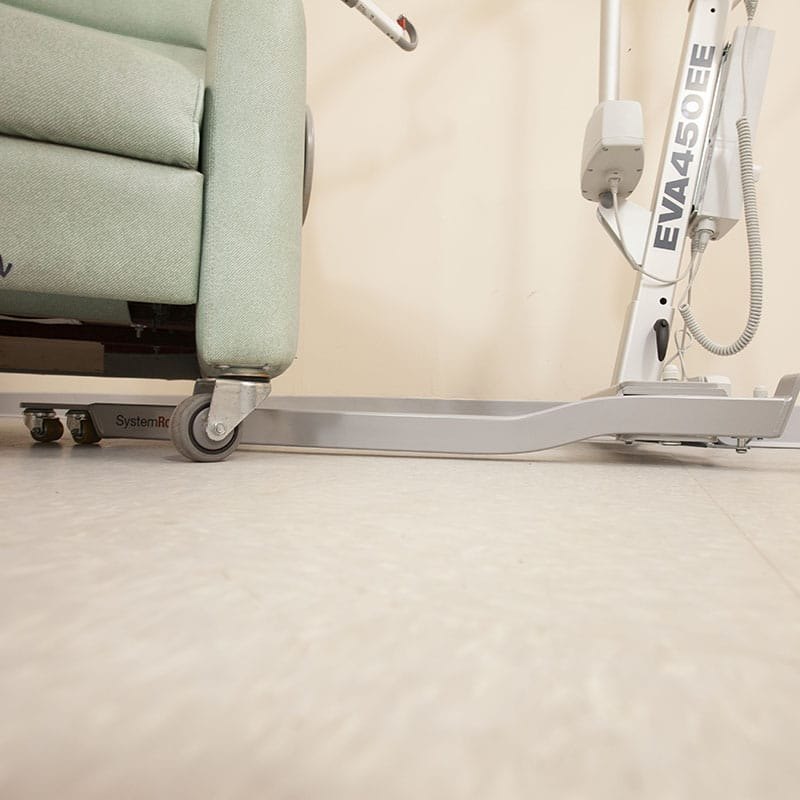

- Outside width is 27.0 in (685 mm) with the legs closed. Check the narrowest door.
- Inside width with the legs open is 34.6 in (880 mm).
- Savaria does not print an overall length for item 60100002. Measure the room as well as the door.
Which sling attaches?
This code uses a 17.7 in (450 mm) carry bar with safety latches. The Eva page does not name a sling family for 60100002. See patient lift slings. We match the sling to the bar before you order.
What is specific to 60100002?
- Front and rear casters are 3.9 in (100 mm). The low-leg 450 is item 60100006.
- The mast has three height positions. The table prints one lifting range, not a range for each position.
- The product page prose says the 450 bar is 17 in. The specification table says 17.7 in. This page uses the table.
How does it compare?
Browse patient lifts and electric floor lifts. The Carina 350 is a lighter lift that folds. The Hoyer Advance is another powered floor lift.
Frequently asked questions
Is 60100002 the low-leg Eva?
No. 60100002 is the Eva450EE with 3.9 in casters. The low-leg 450 lb code is 60100006.
Does the lifting range change with the mast position?
Savaria prints one span, 19.7 to 70.5 in. It does not split that span by the three mast positions.
Where is the emergency stop?
On the control box. If the hand control fails, lowering can be manual or electrical.
How do I know the battery is charging?
A light on the control box shows charging and a full battery. Charging is built into the lift.
Funding and setup
Funding may help: see who may help pay. For this floor lift we deliver and set it up in Toronto and the GTA, fit the sling and walk through the controls and emergency lowering. A short need can start with a patient lift rental.
Specifications
- Weight capacity
- 450 lb (205 kg)
- Product weight
- 85.9 lb (39 kg) with battery
- Caster size
- 3.9 in (100 mm) front and rear
- Sling attachment
- Carry bar 17.7 in (450 mm) with safety latches
- Lifts from floor
- Yes, when the mast position allows it
- Controls
- Hand control for the lift and the base width
- Emergency lowering
- Manual and electrical
- Battery
- 17.6 Ah
- Water resistance
- IPX4
- Minimum lift height
- 19.7 in (500 mm), low end of the lifting range
- Maximum lift height
- 70.5 in (1,790 mm), high end of the lifting range
- Base width closed
- 27.0 in (685 mm) outside
- Base width open
- 38.6 in (980 mm) outside
- Base widening
- Electrical
- Leg opening
- 34.6 in (880 mm) inside, legs open
- Material
- Aluminum
- Battery charger
- Built-in
- Product type
- Electric floor lift
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Replacement parts for this model
10 parts
Open the parts finder for this model
- Handicare CBJ battery pack (80100057) 80100057
- Handicare Eva 400 mast actuator (LINAK LA31), 80100053 80100053
- Handicare Floor Lift 2-Button Hand Control 80100063 80100063
- Handicare Floor Lift 4-Button Hand Control 80100062 80100062
- Handicare Floor Lift Locking Lever Set 80100032 80100032
- Handicare Floor Lift Push Handle Bar 80100034 80100034
- Handicare front castor, 100 mm (80100001) 80100001
- Handicare HB32-4 hand control (80100156) 80100156
- Handicare MiniLift200 rear castor 100 mm, part 80100002 80100002
- Handicare Replacement Lift Battery 280124 280124
Questions about this product?
Talk to our team, try it in a showroom, or book a free home assessment. We help with sizing and funding.
