Description

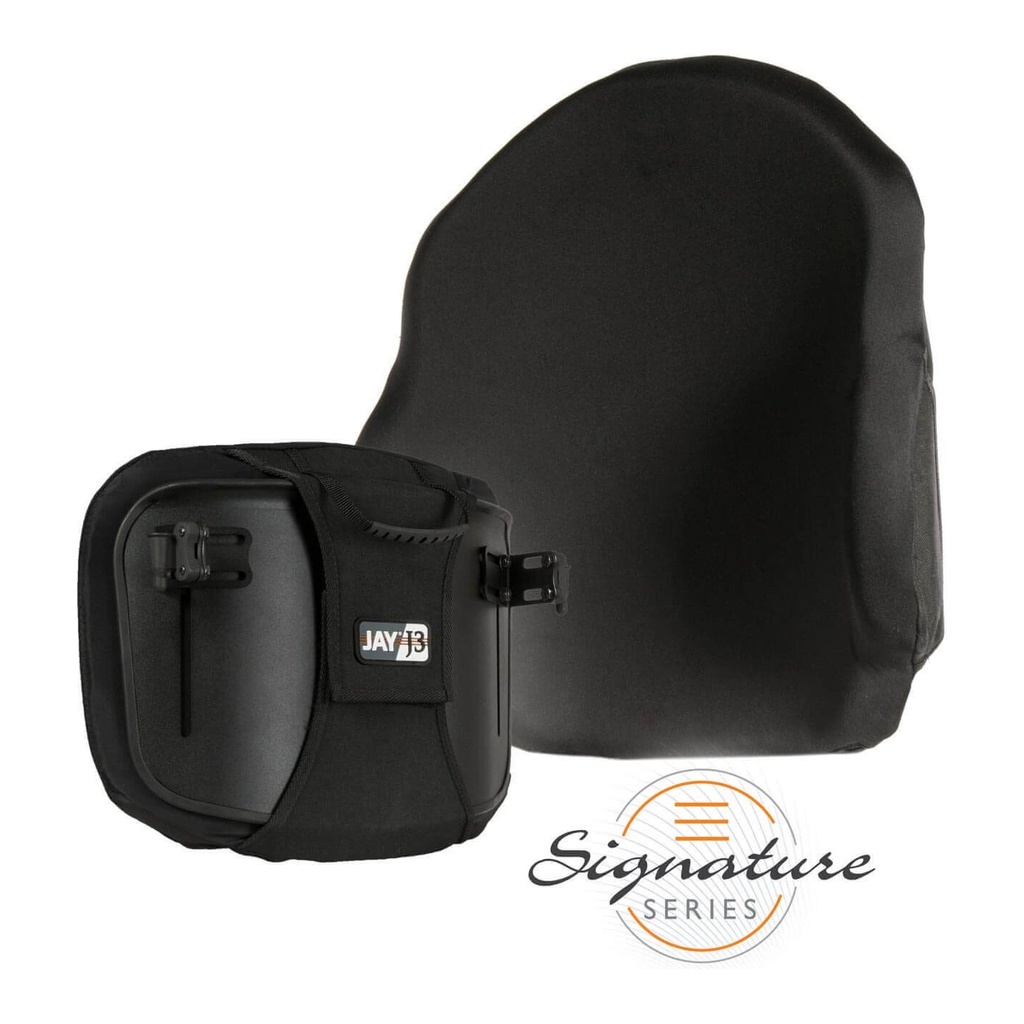

The JAY J3 is Sunrise Medical's contour wheelchair back. Sunrise describes it as the most versatile back in its JAY line, with a lightweight shell in five contour shapes, four height groups and widths from 12 to 26 in.
Choosing a contour
The Posterior shell gives 2.2 in of lateral support, the Posterior Lateral 3 in and the deep shells 6 in. On the maker's comparison scores the deep shells rate highest for lateral stability and the Posterior the lowest.
Choosing a height
Heights come in four groups: lower thoracic at 6.5, 8 or 9.5 in, mid thoracic at 12, 13.5 or 15 in, upper thoracic at 16.5, 18 or 19.5 in, and shoulder height at 21, 22.5 or 24 in. Send the torso measurements on the seating quote form.
Hardware and fitting

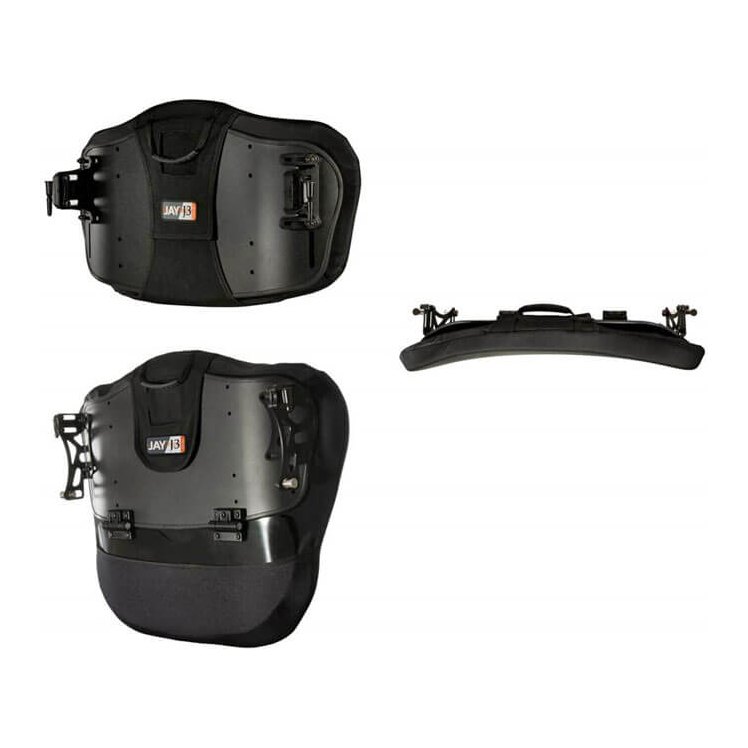

Hardware comes in RH, SH, TH and 4-Point styles, with 20 degrees of angle adjustment and +2 in of width adjustment, for frame tubing of 3/4 to 1 1/8 in. Not every style fits every shell size. Ask our service department about fitting.
Cover, care and weight limits
The cover is a spacer fabric with a Lycra stretch outer layer and machine washes warm with the foam out; the shell is wiped, never soaked. Check the fasteners every six months. It carries 300 lbs at 12 to 20 in and 500 lbs at 22 to 26 in.
Ordering and funding
Funding may help: see who may help pay.
Mobility Specialties is an ADP registered vendor. Made to order items are non-returnable; see the return policy. Sunrise warrants the back for 24 months from the date of purchase, excluding punctures, tears, burns and the cover; claims go through our service department. Comparable backs are under wheelchair backrests.
Frequently asked questions
Which J3 shell should I choose?
The deep shells give 6 in of lateral support, the Posterior Lateral 3 in and the Posterior 2.2 in.
What heights does the J3 come in?
Four groups, from a lower thoracic shell at 6.5 to 9.5 in up to a shoulder height shell at 21 to 24 in.
What frame tubing does the hardware fit?
The hardware fits frame tubing of 3/4 to 1 1/8 in with +2 in of width adjustment; not every style fits every shell size.
What does the warranty cover?
Sunrise's manual gives 24 months from the date of purchase, excluding punctures, tears, burns and the cover; coverage can vary by province.
Specifications
- Weight capacity
- 300 lbs (136 kg) at the 12 in to 20 in widths; 500 lbs (227 kg) at the 22 in to 26 in widths
- Product weight
- 1.7 lbs and up without hardware; as little as 2.2 lbs with the carbon fibre shell and RH hardware
- Construction
- Lightweight contoured shell in five contour shapes and four height groups, with a 1 1/2 in soft foam insert and a carbon fibre shell option
- Cover
- Spacer fabric with a Lycra stretch outer layer
- Cover care
- Machine wash warm at 50 C with the foam out; no dry cleaning, bleach or autoclave. Wipe the shell, never soak it
- Adjustments
- 20 degrees of angle adjustment and +2 in of width adjustment; JAY Your Way modifications available
- Back width
- 12 in to 26 in
- Back height
- Lower thoracic 6.5 in, 8 in or 9.5 in; mid thoracic 12 in, 13.5 in or 15 in; upper thoracic 16.5 in, 18 in or 19.5 in; shoulder 21 in, 22.5 in or 24 in
- Contour depth
- Posterior 2.2 in of lateral support; Posterior Lateral 3 in; Posterior Deep, Deep Lateral and Deep Contour 6 in
- Mounting hardware
- RH, SH, TH and 4-Point styles
- Fits wheelchair widths
- Frame tubing of 3/4 in to 1 1/8 in
- Positioning accessories
- Spine Align inserts, CradleU adjustable fixed laterals, lateral thoracic pads, chest straps and harnesses, and Whitmyer head supports
- Warranty
- 24 months from the date of purchase; punctures, tears, burns and the removable cover are excluded. Coverage may vary by province
- Product type
- Contour wheelchair back
- Use category
- Posterior pelvic and lateral thoracic support
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
