Sunrise Medical

Empulse F35 Front Pull for Town

Around town, the Empulse F35 (EISP11) pulls a manual chair without a handbike. It locks to a subframe that can stay on the chair, and the tube lifts off at 16.5 lb (7.5 kg).

Key specifications All specifications
Weight capacity
242 lb (110 kg)
Product weight
19.8 lb (9.0 kg) with the battery and subframe
Transport weight
16.5 lb (7.5 kg) off the subframe
Range
Up to 9.3 miles (15.0 km), and it changes with the surface, the rider, the temperature, and the terrain
Top speed
9.3 mph (15.0 km/​h), or 3.7 mph (6.0 km/​h) if that slower build is ordered
Battery
Lithium-ion 36 V 4 Ah
Quote only

Priced by quote: your written quote confirms current pricing, options and availability.

What is included?

The pull device with the battery in the frame tube, the subframe and docking clamps, and the charger. Tell us the chair model so we confirm the clamp before you order.

  • Delivery and setup Across Toronto and the GTA: we set it up, show you how it works and service it at home or in our shop. Call (905) 798-1853
  • Safe checkout VISA Visa or Mastercard online, or pay in store when you visit us.
Brand
Sunrise Medical
Category
Power Assist

Description

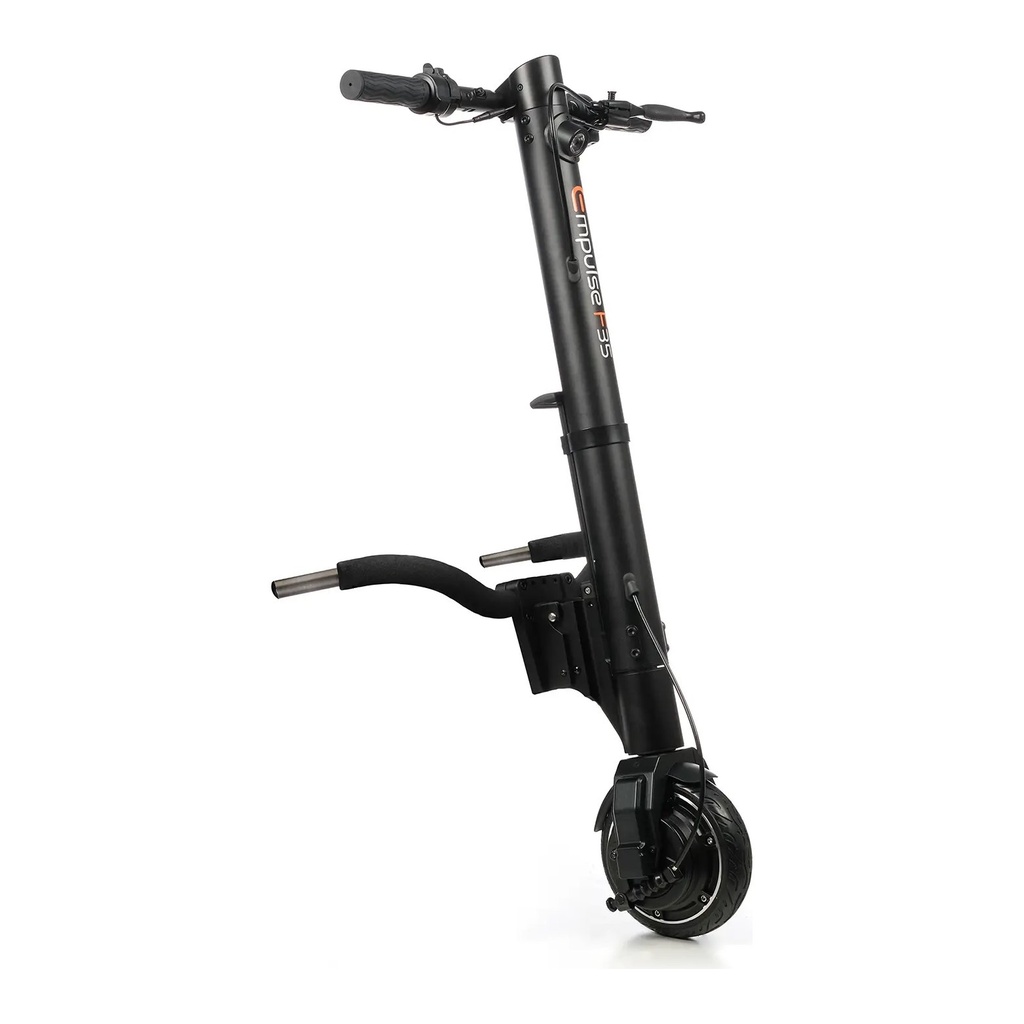

The Empulse F35 (model EISP11) is a front pull power assist that clamps to a manual wheelchair for short town trips.

What does it do and how does it work?

  • 250 W motor with a 6.5 in drive wheel, for slopes up to 11% (6 degrees) at the 242 lb (110 kg) user limit.
  • Range up to 9.3 miles (15 km), depending on surface, rider, driving, temperature and terrain.
  • Two maximum speeds: 15 km/h (9.3 mph) and 6 km/h (3.7 mph), each with three modes.
  • Lithium-ion 36 V 4 Ah battery sits in the frame tube.
  • 19.8 lb (9.0 kg) with the battery and subframe; the tube lifts off at 16.5 lb (7.5 kg), leaving a 3.3 lb (1.5 kg) subframe on the chair.

Who is it for, and who should choose something else?

Will it fit?

  • Fixed or swing-away front frames 10 to 19 in wide, with a mounting height of 10 to 14.5 in.
  • Round reducers for 19, 23, 25.4 or 28.6 mm on a straight bare metal tube; extra clamp sets cover oval tubes, 19.5 to 30 mm and 32 mm.
  • Not for tilt chairs, carbon frames or a swing-away hanger. Front casters lift about 1.6 in (40 mm) once it is attached.
  • Listed size 20 in wide by 35 in long, with a maximum envelope of 36.2 by 23 by 24 in (height by width by depth).

Using it day to day

  • Dock the tube to the subframe, then lift it off when the chair goes in a car; the subframe stays on the chair.
  • Charge the battery in the frame tube.
  • The battery is IATA approved; confirm UN3171 with the airline before flying.

What does it work with, and what are its limits?

  • The F35 is rated to 242 lb (110 kg), and a lower limit on the chair still applies.
  • A build over 6 km/h (3.7 mph) may face local road rules.
  • Warranty: motor 1 year, battery 6 months. See the Warranty tab.

Which version should I choose?

  • Speed build: the 15 km/h (9.3 mph) version or the 6 km/h (3.7 mph) one.
  • Clamp set: round reducers or the oval and larger round adapters, chosen for the chair's tube.

How does it compare?

Frequently asked questions

Can I fly with the F35 battery?

The battery is IATA approved; confirm UN3171 with the airline, because each carrier sets the rule.

Which top speed will I get?

You order the 15 km/h (9.3 mph) maximum or the 6 km/h (3.7 mph) one; both have three modes.

Can a caregiver drive it from behind?

No. The rider steers this pull; a caregiver who will push should choose the R20.

Does the subframe stay on the chair?

Yes. It weighs 3.3 lb (1.5 kg); the tube lifts off and the subframe can stay.

Funding may help: see who may help pay.

Specifications

Weight capacity
242 lb (110 kg)
Product weight
19.8 lb (9.0 kg) with the battery and subframe
Transport weight
16.5 lb (7.5 kg) lifted off the subframe
Top speed
9.3 mph (15.0 km/h), or 3.7 mph (6.0 km/h) if that build is ordered
Battery
Lithium-ion 36 V 4 Ah
Range
Up to 9.3 miles (15.0 km); varies with surface, rider, temperature, and terrain
Attachment
Subframe on a straight metal tube. Round reducers for 19, 23, 25.4, or 28.6 mm
Warranty
Device 24 months; motor and electronics 1 year; batteries and chargers 6 months
Product type
Front pull power assist for a manual wheelchair

Options and sizes can change some figures. Ask us to confirm yours before you order.

Documents

Delivery and service

Delivery and setup

We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.

Service and repairs

Our technicians service what we sell, at home or in our shop.

Try before you buy

Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.

Warranty

Warranty details

Sunrise Medical warrants the Empulse F35 power assist against defects in material and workmanship, for the first consumer purchase through an authorized Sunrise Medical dealer in Canada or the USA. Not transferable.

  • The device: 24 months after delivery, for manufacturing defects.
  • Sunrise-made parts, including the motor and electronics: 1 year.
  • Batteries and chargers: 6 months.
  • Labour to repair, remove or install parts is paid by the owner.
  • Not covered: normal wear on batteries, tires and brake shoes, and damage from neglect, accident, misuse, improper repair, unapproved changes or exceeding the weight limit.

Questions about this product?

Talk to our team, try it in a showroom, or book a free home assessment. We help with sizing and funding.
