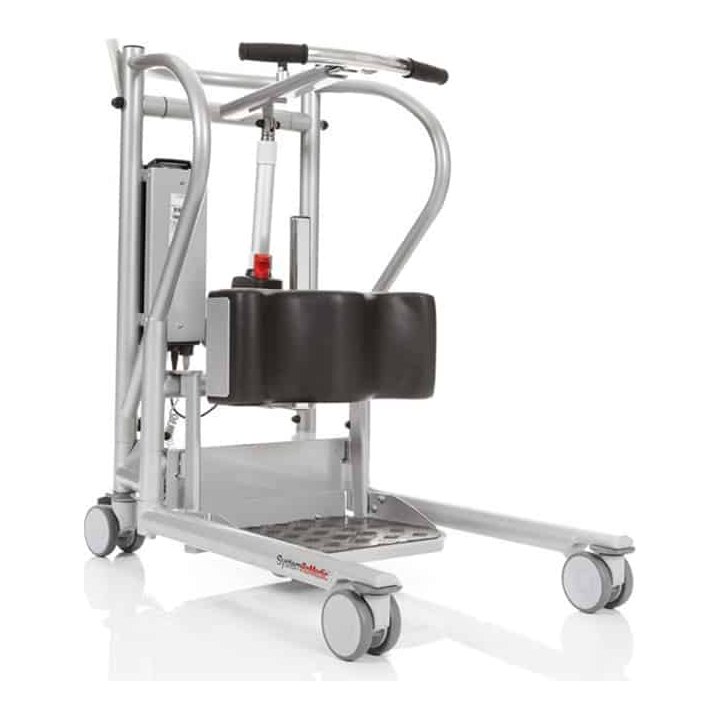

Item 401100334 is the MiniLift200, a powered sit-to-stand lift for a person who can stand and take part in the transfer. This model is rated 200 kg. It is for short indoor transfers on a level floor, not for transport and not for the shower.
Who it is for
- A person who can support their own weight while standing and follow instructions during the move.
- Not a low-leg MiniLift160. Those codes are 60300011 and 60300013, and they stop at 160 kg.
- Short transfers only. The lift is not intended to move a person down a hall or between rooms.
- Indoor use only; it must not be used in water or under the shower.
How a transfer works
- The footplate and the adjustable lower-leg support take the feet and shins, and a ThoraxSling supports the back.
- The four-button hand control raises the arm and opens or closes the base.
- Choose the sling loop that reaches the hook on the lift arm: a longer loop for a shorter user, a shorter loop for a taller user, with the arm pulled out.
- Never leave the person alone during the transfer.
Base and room fit
- Outside width is 23.2 in (590 mm) closed and 40.6 in (1,030 mm) open, with 34.4 in (875 mm) between the legs when open.
- The lift is 38.6 in (980 mm) long and 39.4 in (1,000 mm) high, with 3.9 in (100 mm) casters front and rear; the rear casters lock.
- The footplate sits 3.7 in (95 mm) above the floor and can be removed so the MiniLift can be used as a walking aid.
Power and emergency lowering
- Charging is built in. Charge the lift daily when it is in use, and charge it away from a wet floor.
- The emergency stop is on the control box. Lowering can be manual or electrical if the power fails.
- Keep the lift arm loaded while it is lowered.
- The lift is rated IPX4 and the frame is powder-coated steel.
Sling and accessories
A sit-to-stand sling is not in the box; the ThoraxSling is the maker's sling for this lift. The calf strap, item 70200033, is also separate. The lower of the lift limit and the sling limit applies. We match the sling before you order.
Where it sits in the range
Browse sit-to-stand lifts and patient lifts. The Span F500S is another powered sit-to-stand, and the Hoyer Journey is a smaller active lift.
Funding and setup
Funding may help: see who may help pay. For this sit-to-stand lift we deliver and set it up in Toronto and the GTA, fit the sling and walk through the controls and emergency lowering. A free home assessment can check the doorway and the bed first.
Frequently asked questions
Is 401100334 a low-leg MiniLift?
No. The low-leg codes are 60300011 and 60300013, the 160 kg model. This code uses 3.9 in casters at both ends.
Can the person be moved down the hall in it?
No. The MiniLift200 is for short transfers, not for transporting a person between rooms.
Does the footplate come off?
Yes. The footplate can be removed so the lift can be used as an assistive walking device.
Is the sling included?
No. The ThoraxSling and the calf strap are separate items; the lift is supplied without them.
Specifications
- Weight capacity
- 200 kg
- Product weight
- 108 lb (49 kg)
- Caster size
- 3.9 in (100 mm) front and rear
- Overall height
- 39.4 in (1,000 mm)
- Overall length
- 38.6 in (980 mm)
- Sling attachment
- Lift arm for a ThoraxSling, sold separately
- Controls
- Four-button hand control for the lift and the powered base
- Emergency lowering
- Manual and electrical
- Water resistance
- IPX4
- Base width closed
- 23.2 in (590 mm) outside
- Base width open
- 40.6 in (1,030 mm) outside
- Base widening
- Electrical
- Leg opening
- 34.4 in (875 mm) inside, legs open
- Material
- Powder coated steel
- Compatible with
- ThoraxSling, listed by Savaria for MiniLift
- Battery charger
- Built-in
- Product type
- Powered sit to stand lift
Options and sizes can change some figures. Ask us to confirm yours before you order.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Mobility store warranty terms
These are Mobility's purchase and service policy terms, separate from any manufacturer warranty coverage.
1 year on parts.
Read the warranty and service policy for the full terms.
Replacement parts for this model
18 parts
Open the parts finder for this model
- Handicare battery box CBJ grey BAJ1 (80100161) 80100161
- Handicare CBJ battery pack (80100057) 80100057
- Handicare front castor, 100 mm (80100001) 80100001
- Handicare HB32-4 hand control (80100156) 80100156
- Handicare MiniLift160 and MiniLift200 Bumper Kit 80100074 80100074
- Handicare MiniLift160 and MiniLift200 Leg Strap Plates 80100070 80100070
- Handicare MiniLift200 and QuickMove Locking Knee Pad Handles 80100077 80100077
- Handicare MiniLift200 Foot Plate 80100079 80100079
- Handicare MiniLift200 front lifting arm, part 80100082 80100082
- Handicare MiniLift200 knee pad, complete (80100080) 80100080
- Handicare MiniLift200 LA28 Leg Spreading Actuator 80100040 80100040
- Handicare MiniLift200 lift arm adjustment pin, part 80100081 80100081
- Handicare MiniLift200 Mast Actuator LA31-L4 80100072 80100072
- Handicare MiniLift200 Mast Actuator LA34 80100041 80100041
- Handicare MiniLift200 rear castor 100 mm, part 80100002 80100002
- Handicare MiniLift200 rear castor kit (80100050) 80100050
- Handicare Replacement Lift Battery 280124 280124
- LINAK Hand Control Tester 80100130 for Handicare MiniLift200 80100130
