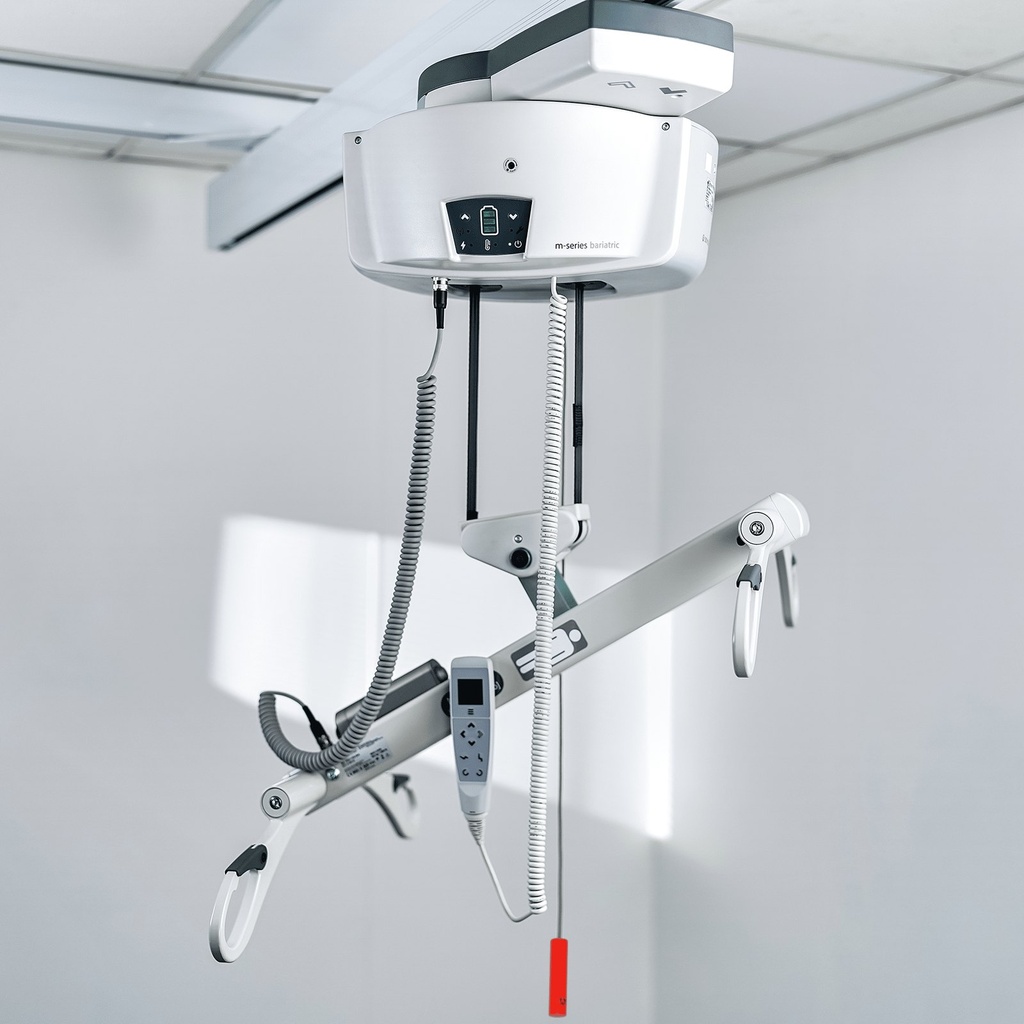

The Savaria Patient Care M-Series bariatric ceiling lift is one motor cabin for a fixed ceiling track. It comes at 800 lb (363 kg), 1,000 lb (454 kg) or 1,200 lb (544 kg), and the written quote names the load.
Who is it for?
- A person above the 600 lb limit of the Clinical M-Series, up to one of the three bariatric loads.
- A room that needs one motor on the track rather than two motors side by side.
- It is fixed to the track and is not carried between rails.
Why the load matters
- The three ratings share one cabin, so the family name does not pick 800, 1,000 or 1,200 lb.
- Lifts per charge fall as the load rises: about 70 at 800 lb, 45 at 1,000 lb and 30 at 1,200 lb.
- Lifting speed also falls: 2 in/sec at 800 lb, 1.8 at 1,000 lb and 1.6 at 1,200 lb.
- The motor weighs 23.5 kg (51.8 lb) and is rated for a 10-year product life.
What has to be on the quote?
- The track layout, including any curves, set at the home assessment.
- The load: 800, 1,000 or 1,200 lb.
- The carry bar. A motorized 4-point tilting bar is an option, not a default.
- A sling matched to the bar and load; no sling is included.
- Charging. Two replaceable lithium-ion batteries sit in the motor, and a full charge takes about 4 hours.
How does it work?
The hand control raises and lowers, moves the motor left and right on the track, tilts and rotates the bar, and returns the unit to charge.
- Horizontal speed is 12 cm/sec, or 19 cm/sec at the factory setting, up to 26 cm/sec.
- The motor turns 360 degrees for positioning in tight rooms.
- The strap has an antimicrobial coating and a fray-resistant routing design.
- The on/off switch gives powered 3-Down: emergency stop plus up and down emergency control.
- The duty cycle is 10 percent, with 1 minute of continuous use.
Installation and environment
- The track is installed by an authorized dealer and checked for the room.
- The IP20 rating means it is kept away from splashing water.
- Noise is at most 54 dBA.
- We install ceiling track lifts across Toronto and the GTA after a free home assessment. See ceiling lift planning before the track is drawn.
Warranty
Three years, including the battery. See the warranty terms.
How does it compare?
- Fixed ceiling lifts: the M-Series Clinical stops at 600 lb.
- Ceiling lifts: the wider range.
- Patient lifts: floor lifts when a track is not the plan.
Funding
Funding may help: see who may help pay.
Frequently asked questions
Is the tilting bar packed with the motor?
The motorized 4-point bar is an option. Ask the quote to say whether that bar is packed.
Can one cabin stand in for two motors side by side?
Yes. It is one cabin, and the track still has to suit it.
Will one sling fit every load in this family?
A sling is chosen for the load and the bar on the quote. It is not packed in the motor box.
How long does the warranty run?
Three years, including the battery.
Specifications
- Weight capacity
- 800 lb (363 kg), 1,000 lb (454 kg), or 1,200 lb (544 kg)
- Product weight
- 51.8 lb (23.5 kg)
- Installation
- Fixed motor in a ceiling track, installed by an authorized dealer.
- Sling attachment
- Hand control tilts the carry bar. A motorized 4-point bar is an option. Sling not included.
- Controls
- Up, down, left, right, tilt, rotate, and return to charge on the hand control.
- Emergency lowering
- Powered 3-Down on the on/off switch: emergency stop, plus up and down emergency control.
- Battery
- Lithium-ion, 25.2 V, 2500 mAh, two replaceable batteries in the motor
- Water resistance
- IP20
- Battery charger
- 100-240 VAC, 50-60 Hz input; 29.4 VDC, 1 A maximum. About 4 hours to full.
- Lifts per charge
- About 70 lifts of 24 in (61 cm) at 800 lb, 45 at 1,000 lb, or 30 at 1,200 lb
- Traverse
- Powered traverse. Left and right buttons move the motor on the track.
- Lifting speed
- 2 in/sec at 800 lb, 1.8 in/sec at 1,000 lb, 1.6 in/sec at 1,200 lb
- Duty cycle
- 10 percent, 1 minute of continuous use
- Product life
- 10 years
- Horizontal speed
- 12 cm/sec, 19 cm/sec at the factory setting, up to 26 cm/sec
- Noise level
- 54 dBA maximum
- Warranty
- 3 years, including the battery
- Product type
- Fixed ceiling lift
Options and sizes can change some figures. Ask us to confirm yours before you order.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Savaria gives the M-Series Bariatric ceiling lift a 3-year warranty on all components, including the batteries. The full written terms come with the lift.
- All components, including the batteries: 3 years.
