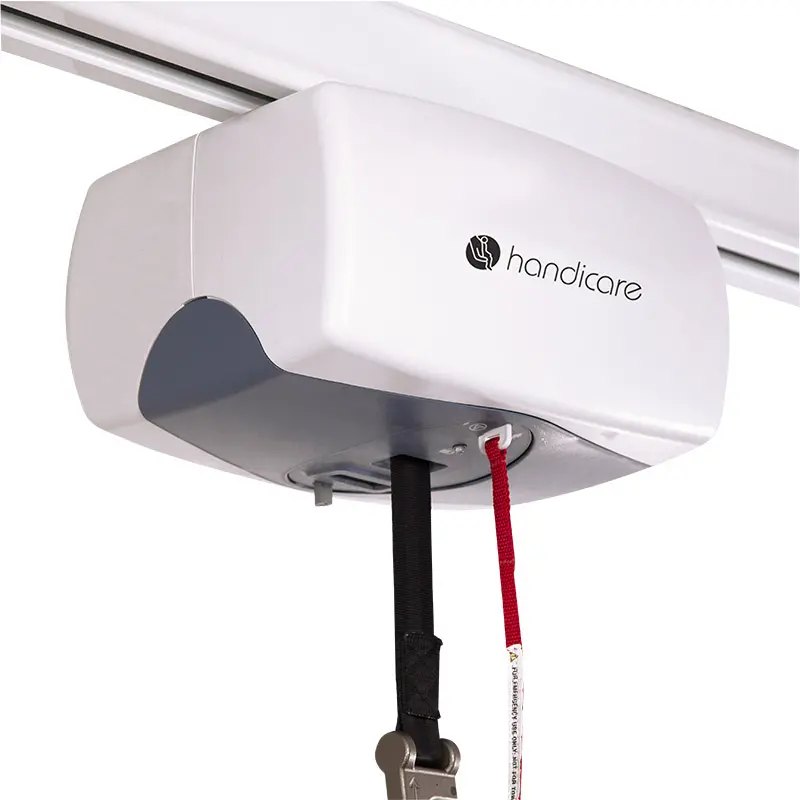

C-1000, item 329100, is the manual-traverse ceiling lift rated 1000 lb (454 kg). It hangs on a ceiling track, lowers on a strap, and moves along the track by hand. It is not the power-traverse C-1000 or the C-800.
What this code is
- 329100 is the C-1000 with manual traverse.
- Power traverse is item 329150, Omni charging on manual traverse is 329101, and power X-Y is 329137.
- A lower-capacity fixed lift is the C-450.
- More fixed lifts are on the ceiling lift page; floor lifts are under patient lifts.
How it lifts
- The strap travels up to 96 in (2438 mm), and the case weighs 24.5 lb (11.1 kg).
- A pneumatic hand control raises and lowers the strap.
- The strap ends in a quick-release carabiner for the carry bar. We confirm which carry bar, if any, ships with 329100 before you order.
- The person and sling must stay within 1000 lb (454 kg). Use only a sling Handicare authorizes.
- A full battery gives 17 to 20 lifts at 1000 lb, each 24 in at mid-range.
- The duty cycle is 1 minute on and 9 minutes off.
If the buttons will not lower
- A red cord under the lift starts a powered lower; pull it and hold.
- An Allen key can move the strap. The lift must then be reset before reuse.
Charging and service
- Charge only with a Soneil 2403SRM30 or a Mascot 9940.
- The lift is expected to last 22,500 cycles or 10 years, whichever is reached first.
- Fit a new strap every 5,000 cycles or 3 years.
- The warranty is 1 year from installation or 18 months from manufacture, whichever is shorter. Batteries are excluded after 90 days.
Track
- The track is cut for the room, fitted at installation and not included.
- Sections come in 1.82, 2.0, 5.0, 6.0 and 6.5 m, with curves, gates and H layouts.
Funding and a home check
Funding may help: see who may help pay. The track layout depends on the room, so book a home assessment before the lift is ordered.
Frequently asked questions
Do I need to add a track?
No. The track is fitted when the system is installed and is not in the lift box.
Is 329100 the power-traverse C-1000?
No. 329100 is manual traverse. Power traverse and Omni charging are other C-1000 codes.
What lowers the person if the buttons fail?
A red cord under the lift. An Allen key can also move the strap, and the lift then needs a reset before reuse.
Which sling can hang on this lift?
Only a sling Handicare authorizes for this lift. The person and the sling together must stay within 1000 lb (454 kg).
Specifications
- Weight capacity
- 1000 lb (454 kg)
- Product weight
- 24.5 lb (11.1 kg)
- Installation
- Ceiling track, fitted when the system is installed
- Sling attachment
- Quick-release carabiner for the carry bar
- Controls
- Pneumatic hand control
- Emergency lowering
- Red cord, plus a manual Allen key
- Battery
- 24 VDC, two 12 VDC 5.0 Ah sealed lead-acid
- Lifting range
- Up to 96 in (2438 mm)
- Compatible with
- Slings authorized by Handicare only
- Battery charger
- Use only the Soneil 2403SRM30 or Mascot 9940
- Lifts per charge
- 17-20 lifts at 1000 lb, each 24 in, per full battery
- Traverse
- Manual
- Duty cycle
- 1 minute on, 9 minutes off
- Service life
- 22,500 cycles or 10 years, whichever comes first
- Strap replacement
- Every 5,000 cycles or 3 years
- Warranty
- 1 year from installation or 18 months from manufacture, whichever is shorter
- Product type
- Fixed ceiling lift
Options and sizes can change some figures. Ask us to confirm yours before you order.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Handicare guarantees the C-1000 ceiling lift, supplied new, against failure caused by defects in material or workmanship.
- Lift: 1 year from the date of installation or 18 months from the date of manufacture, whichever is shorter.
- Batteries: 90 days from the original purchase.
- Handicare's liability is limited to replacing defective parts.
- Excludes normal wear and tear, damage by natural forces, user neglect, misuse and deliberate damage.
- Void if the lift is not serviced by Handicare or its authorized service agents as recommended, or if anyone unauthorized works on it.
- Your statutory rights are not affected.
Replacement parts for this model
65 parts
Open the parts finder for this model
Ceiling Lift Parts
- Ceiling lift battery cable jumper, order 636051 636051
- Ceiling lift branded middle cover, order 636002HC 636002HC
- Ceiling Lift Panel Grommet, Two Way 635610 635610
- Ceiling lift transcord back bracket bushing, order 636038 636038
- Ceiling Lift Trolley Wheel Spacer 635048 635048
- Ceiling Lift Trolley Wheel, Order 636098 636098
- Handicare Bariatric Ceiling Lift Tape Reel Worm Gear 636019 636019
- Handicare C-1000 bi-colour LED cable, part 636059 636059
- Handicare C-1000 ceiling lift 2-point carry bar, orders 360770 and 360771
- Handicare C-1000 ceiling lift 4-point carry bar, order 360772 360772
- Handicare C-1000 ceiling lift main board, order 636000US 636000US
- Handicare C-450/C-625 Borealis charger block, part 635003 635003
- Handicare C-450/C-625 charger contact strip, part 635004 635004
- Handicare C-450/C-625 emergency lowering plug, part 635106 635106
- Handicare C-450/C-625 trolley axle bushing, part 635005 635005
- Handicare C-450/C-625 trolley axle, part 635002 635002
- Handicare C-800 and C-1000 4-Channel Hand Control 635601 635601
- Handicare C-800 and C-1000 middle cover insert, part 636003 636003
- Handicare C-800 and C-1000 middle cover, part 636002 636002
- Handicare C800/C1000 limit-switch stop, part 636009 636009
- Handicare C800/C1000 switch actuator, part 636024 636024
- Handicare C800/C1000 switch bottom plate, part 636011 636011
- Handicare C800/C1000 tape reel strap shaft, part 636025 636025
- Handicare C800/C1000 transcord bushing housing, part 636027 636027
- Handicare C800/C1000 transcord compression spring, part 636036 636036
- Handicare C800/C1000 transcord shaft bushing, part 636031 636031
- Handicare C800/C1000 transcord shaft spacer, part 636028 636028
- Handicare C800/C1000 transcord shaft support, part 636010 636010
- Handicare ceiling lift battery bracket, bottom, order 636005 636005
- Handicare ceiling lift battery bracket, order 636016 636016
- Handicare ceiling lift battery cable assembly, order 636058 636058
- Handicare ceiling lift battery side holder, order 636006 636006
- Handicare ceiling lift bushing, order 636017 636017
- Handicare ceiling lift emergency stop bracket, order 636007 636007
- Handicare Ceiling Lift Gearbox 636004 636004
- Handicare ceiling lift grommet bracket, order 636008 636008
- Handicare ceiling lift limit switch cable, order 636054 636054
- Handicare ceiling lift roller 0.375 x 0.255 in, order 636023 636023
- Handicare ceiling lift roller shaft, order 636022 636022
- Handicare ceiling lift side cover top bracket, order 636018 636018
- Handicare ceiling lift side cover with hole, order 636001H 636001H
- Handicare ceiling lift standoff, order 636015 636015
- Handicare Ceiling Lift Switch Top Plate 636012 636012
- Handicare Ceiling Lift Top Panel 636026 636026
- Handicare Ceiling Lift Top Panel Extrusion 636050 636050
- Handicare ceiling lift transcord shaft, order 636029 636029
- Handicare ceiling lift traverse motor cable, order 636056 636056
- Herga 2 Channel Hand Control for Black Foam Bars 635600 635600
- Patient Lift Battery Pack 635045 635045
Ceiling Track & Trolley Parts
- Ceiling Lift Charging Endstop Finger Guard 670556 670556
- Ceiling Lift Hand Control Wall Box Angel-Wall-Box Angel-Wall-Box
- Ceiling Lift Mains Plug 403546 403546
- Ceiling lift pneumatic receiver tubing, order 610409 610409
- Ceiling lift spring pin, 3/32 by 5/8 in, order 430410 430410
- Ceiling Lift Standoff, Order Code 430416 430416
- Handicare Bariatric Ceiling Lift Strap 413738 413738
- Handicare C-450/C-625 QTech LED panel mount kit, part 610441 610441
- Handicare C800/C1000 Herga airline grommet, part 430630 430630
- Handicare Ceiling Lift Carry Bar Wall Holder 360509 360509
- Handicare Ceiling Lift Charger Assembly 400810 400810
- Handicare Ceiling Lift Charger with Endstop 440152 440152
- Handicare Ceiling Lift Display and Cable 610447 610447
- Handicare charging assembly, order 440406 440406
- Handicare lift TA box, order 610930 610930
- Handicare mains cable, order code 280678 280678
